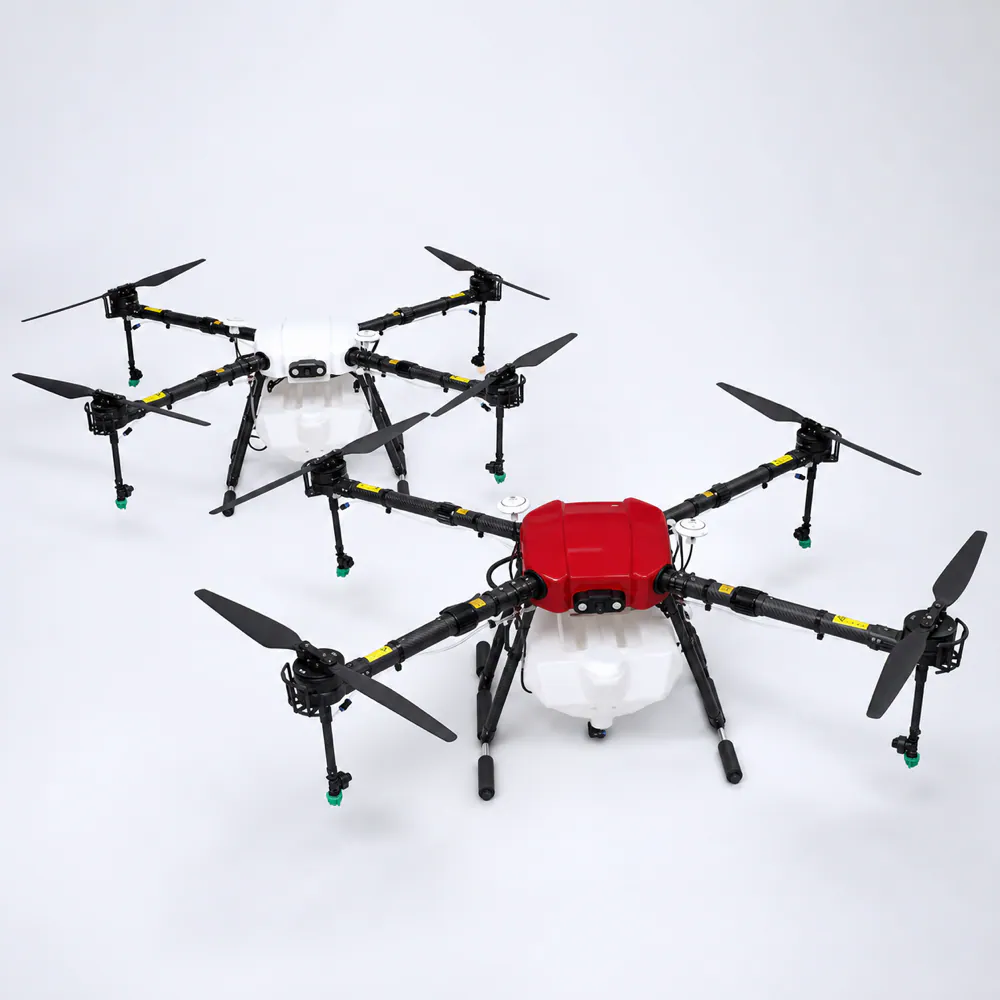

TYI 4 Axis 10L
A foldable 10 L agricultural spraying platform that combines practical field capacity with manageable transport and storage.
Request a Quote WhatsApp Our Team
- 10 L
- Tank capacity
- 9.5 kg
- Weight without battery
- 10–20 min
- Flight time
- 3–5 m
- Spraying width
Versatile field capacity
More Capacity. Easy Daily Handling.
The TYI 4 Axis 10L gives growers and agricultural service teams additional spraying capacity while keeping the airframe foldable and practical to move between working areas.

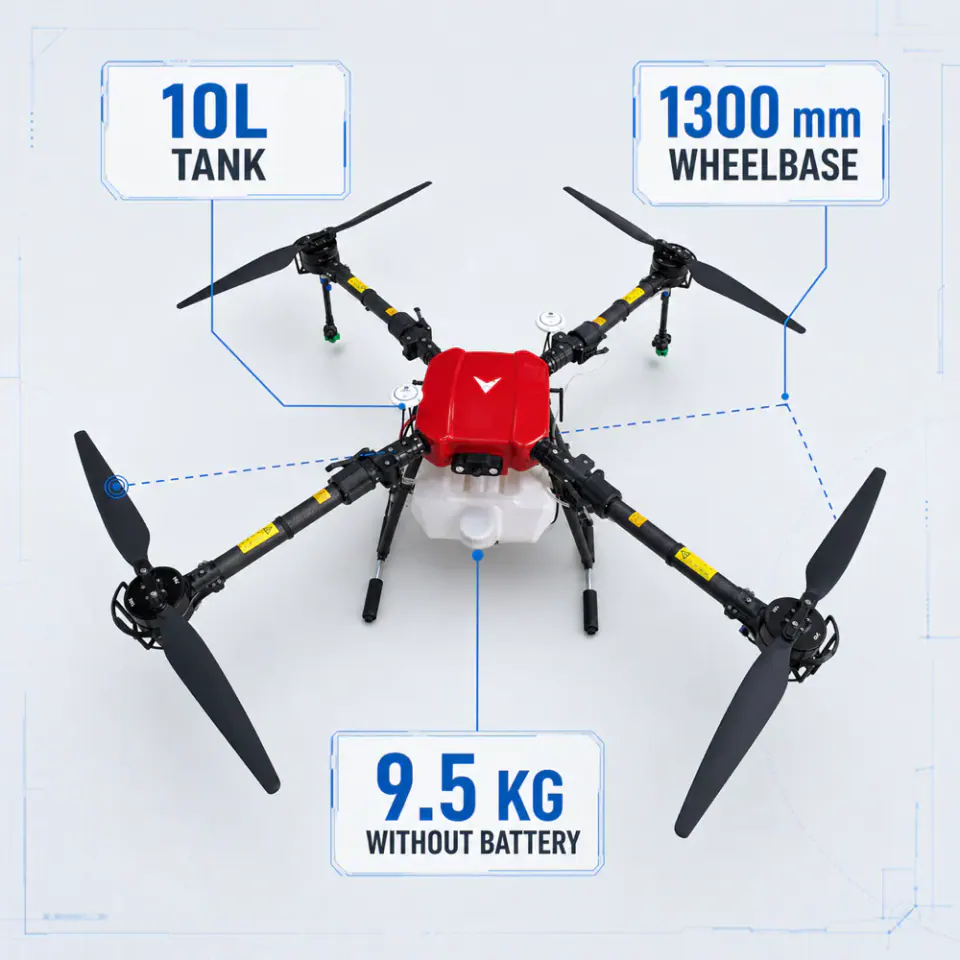

01 / Capacity
Ten Litres. Balanced Platform.
A 10 L tank, 1300 mm wheelbase and 9.5 kg airframe weight without battery provide a balanced configuration for everyday crop protection work.
- Tank capacity
- 10 L
- Wheelbase
- 1300 mm
- Weight without battery
- 9.5 kg

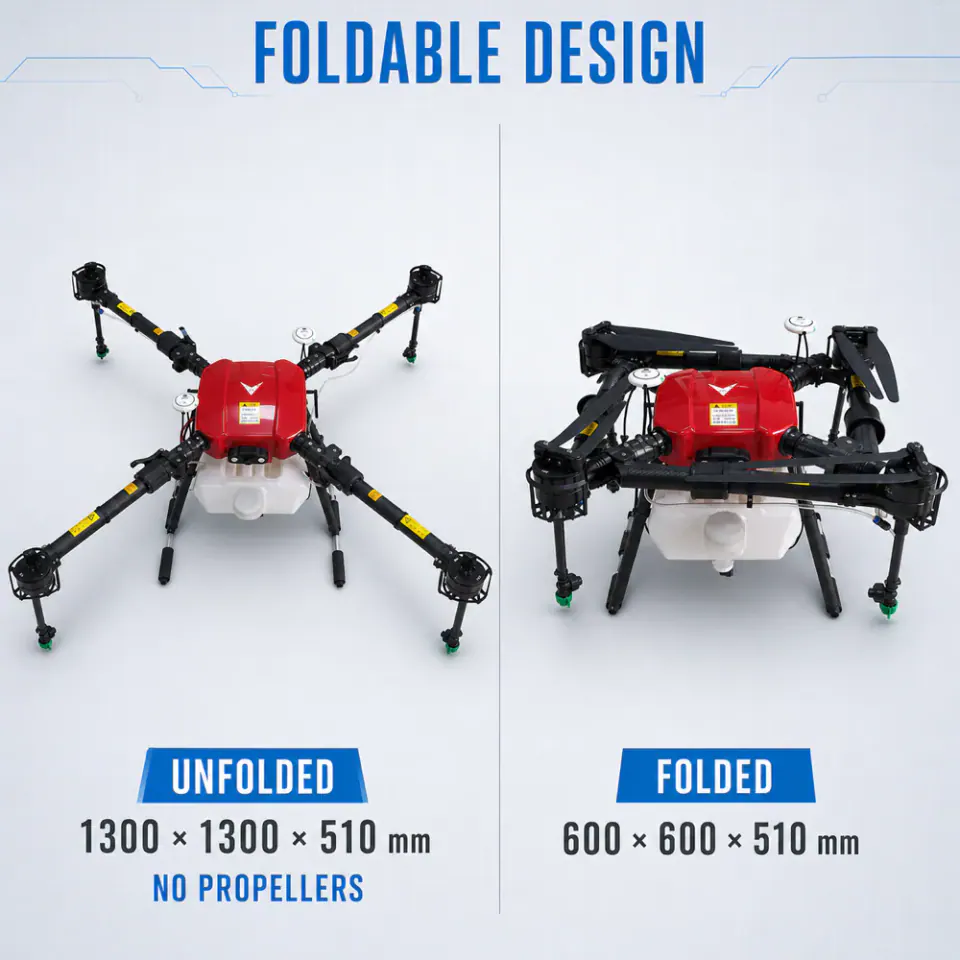

02 / Foldable structure
Open for Work. Fold for Transport.
The foldable airframe reduces storage and transport volume without changing the working footprint required for stable agricultural operation.
- Unfolded size
- 1300 × 1300 × 510 mm
- Folded size
- 600 × 600 × 510 mm

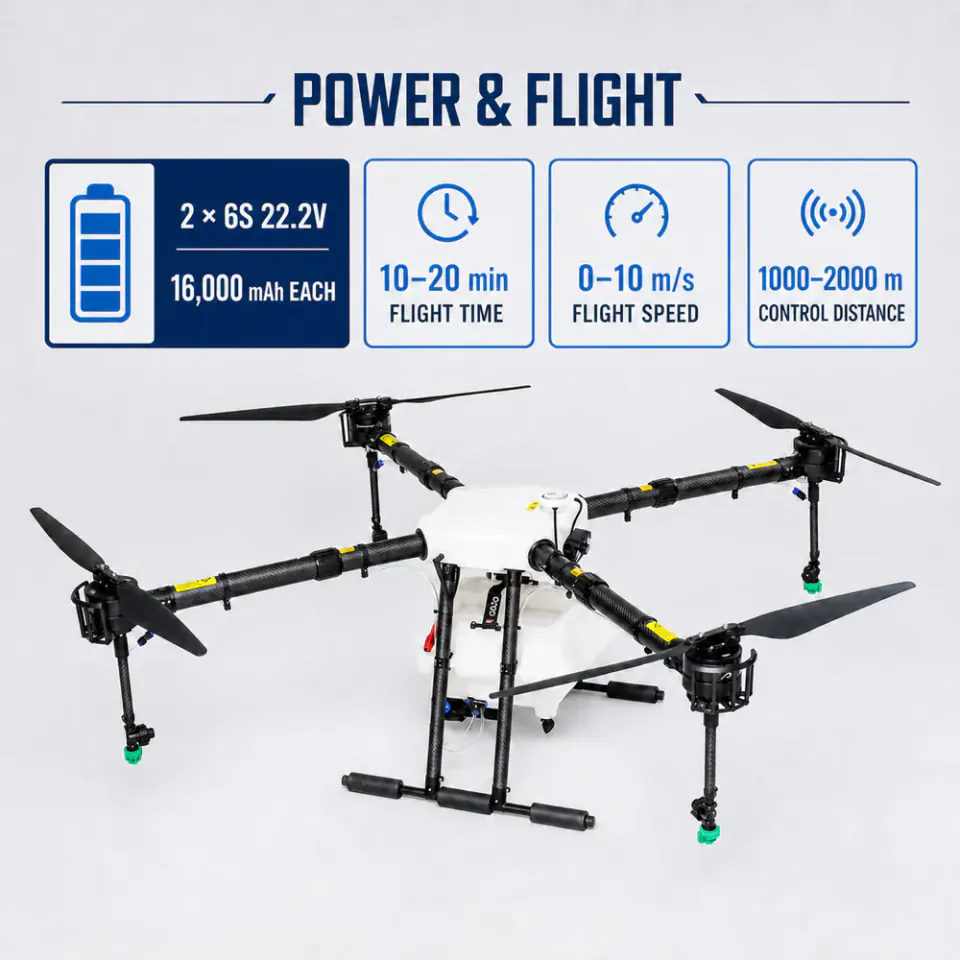

03 / Power and endurance
Reliable Power. Practical Field Range.
The dual 6S battery configuration supports repeatable spraying missions with published flight, speed and control-distance parameters.
- Battery
- 2 × 6S / 22.2 V
- Battery capacity
- 16,000 mAh each
- Flight time
- 10–20 min
- Flight speed
- 0–10 m/s
- Control distance
- 1000–2000 m

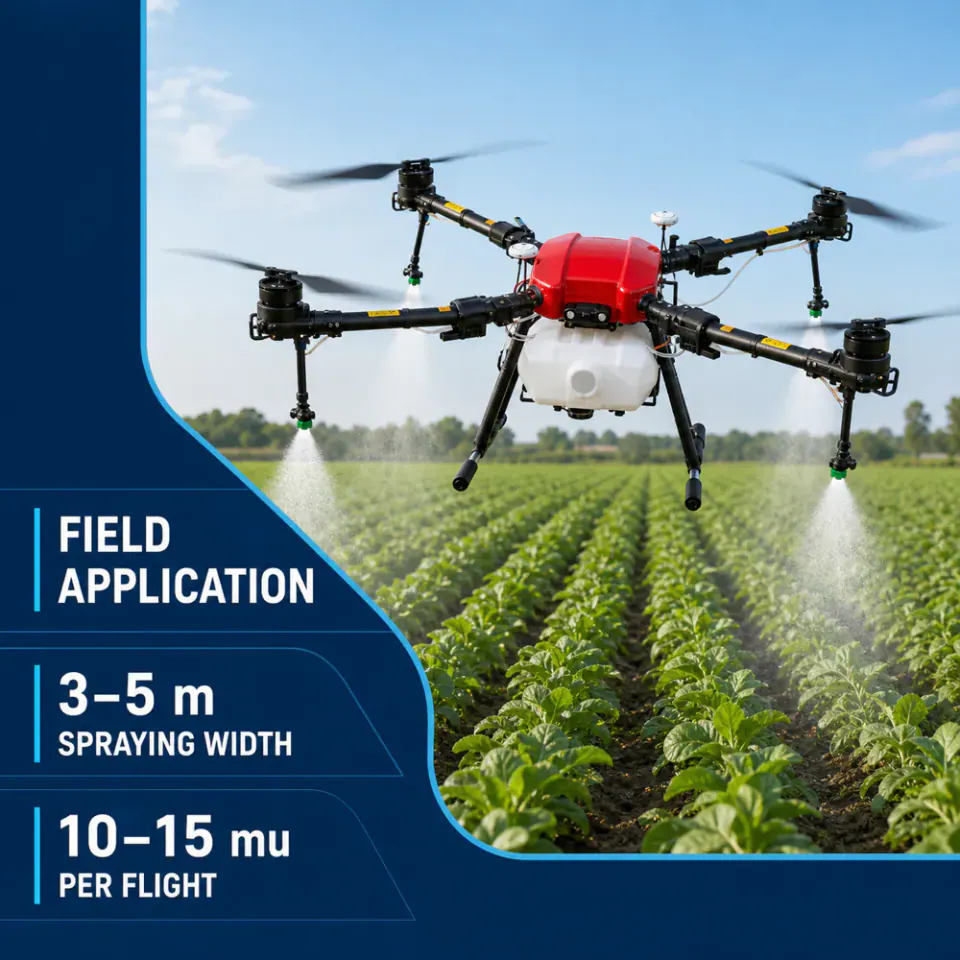

04 / Field application
Designed Around Real Farm Work.
A published spraying width of 3–5 m and operating efficiency of 10–15 mu per flight make the 10L platform suitable for broader routine crop-care tasks.

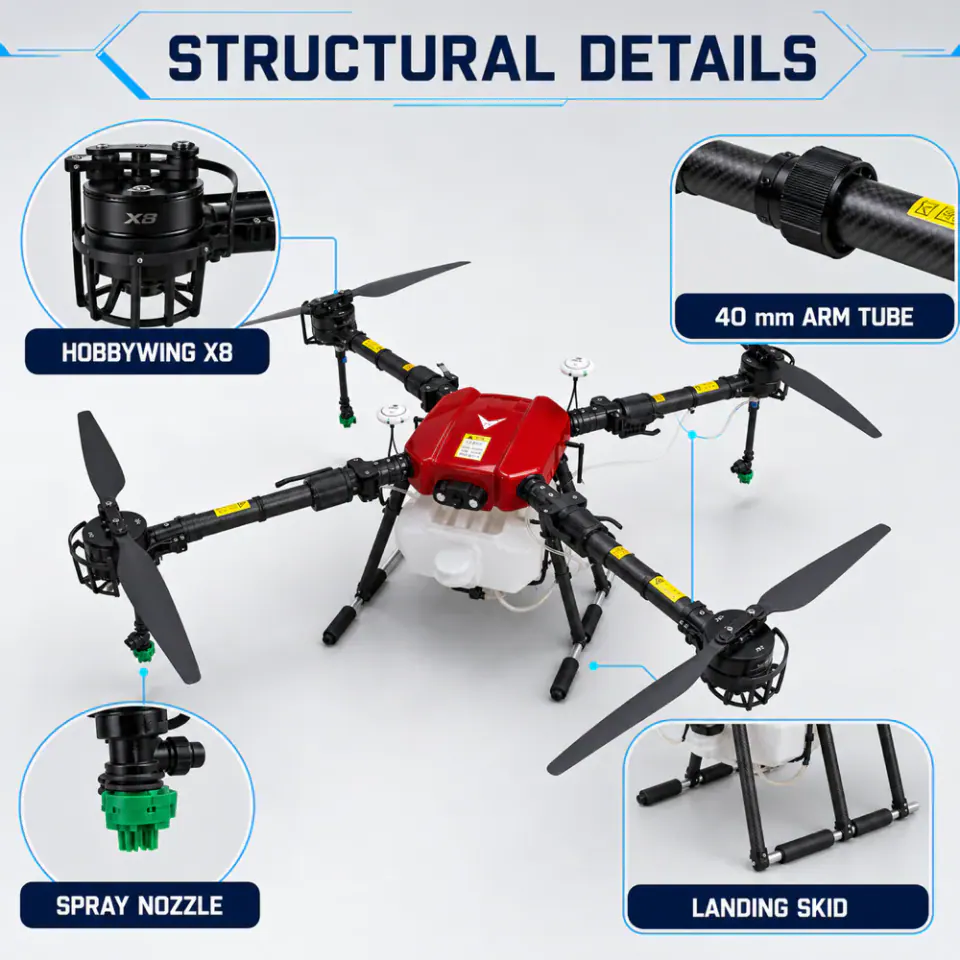

Structural details
The Working Parts, Clearly Shown.
- Hobbywing X8
- 40 mm arm tube
- Spray nozzle
- Landing skid
10 L purchase planning
Confirm the Battery Plan and Field Assumptions.
The TYI 4 Axis 10L catalog lists “2 × 6S / 22.2 V” and “16,000 mAh each.” Use these entries as points to confirm for the offered aircraft version, not as a complete plan for repeated flights.
Share your crop, plot size, intended application rate and planned working time. Use the agricultural spraying drone quotation checklist to record the proposed equipment and any unresolved planning questions.
How many batteries should I plan for repeated 10 L spraying flights?
Ask for a proposal that separates batteries required for the offered aircraft configuration from any additional batteries for your intended work schedule. Request the matching battery and charging-equipment identifiers and the assumptions behind the proposed quantities. This page does not specify a battery-turnaround time or an extra-battery count.
Can the published figures establish my daily spraying coverage?
Not on their own. The page lists 10–20 minutes of flight time, 10–15 mu per flight and a 3–5 m spraying width. Ask which payload, application rate and field conditions these figures represent, and how a proposed workday accounts for refilling, battery turnaround and travel between plots. They are not a daily-output guarantee.
Buyer’s guide
Compare the Complete Spraying Workflow.
Compare capacity, spray system, batteries, field fit, maintenance and support before selecting a 5–30 L platform.
