Agricultural Drones / 8 Axis Series
TYI 8 Axis 16L

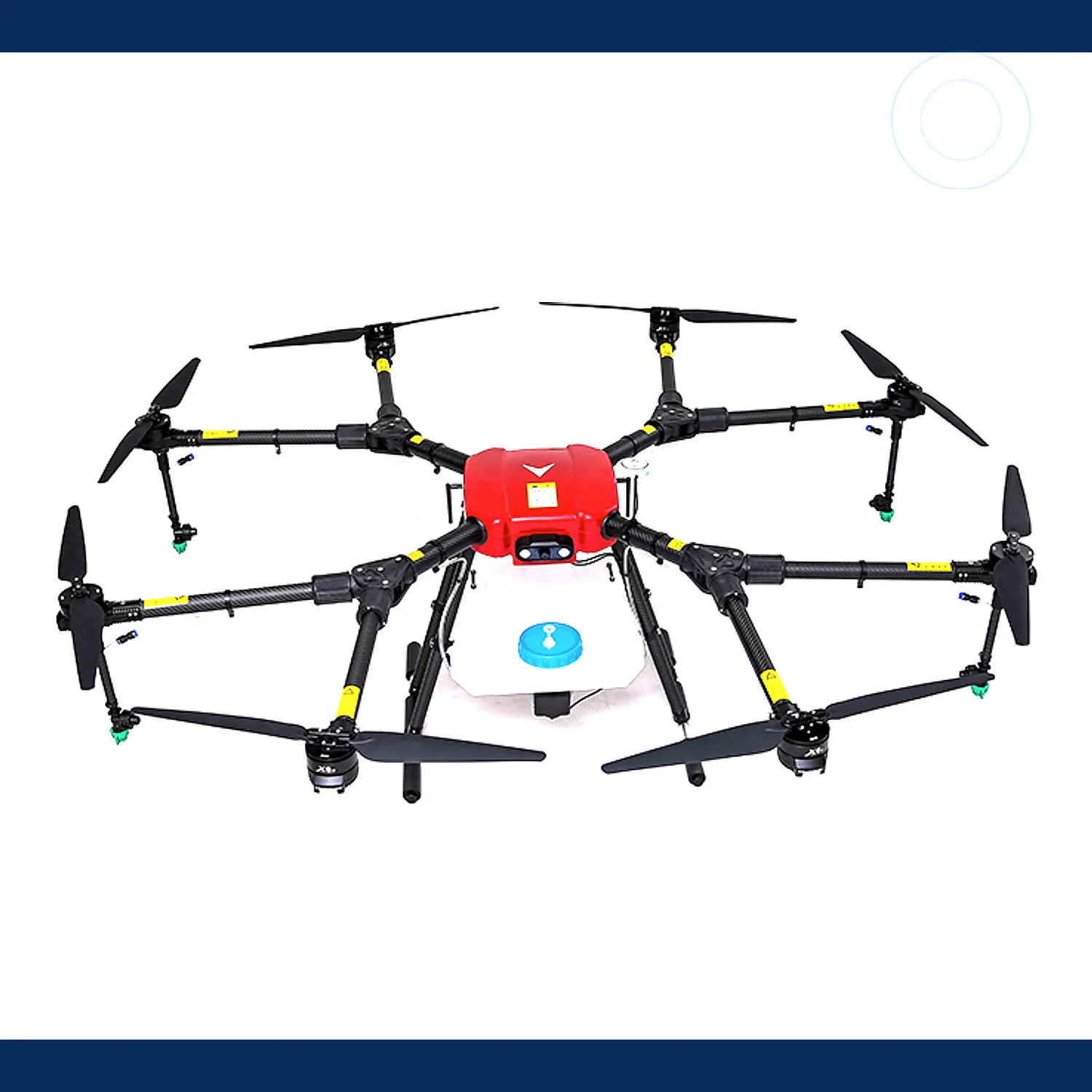

A compact, foldable eight-axis 16 L agricultural spraying drone with pressure spraying, practical transport dimensions and a stable multi-rotor platform.
Request a Quote WhatsApp Our Team
- 16 L
- Load capacity
- 13.5 kg
- Weight without battery
- 10–24 min
- Flight time
- 5–7 m
- Spraying width
Compact eight-axis platform
Eight Rotors. Sixteen-Litre Capacity.
The TYI 8 Axis 16L combines a foldable eight-axis airframe with a 16-litre agricultural spraying system. Its compact folded footprint, pressure spraying system and published operating range support practical crop-protection work.

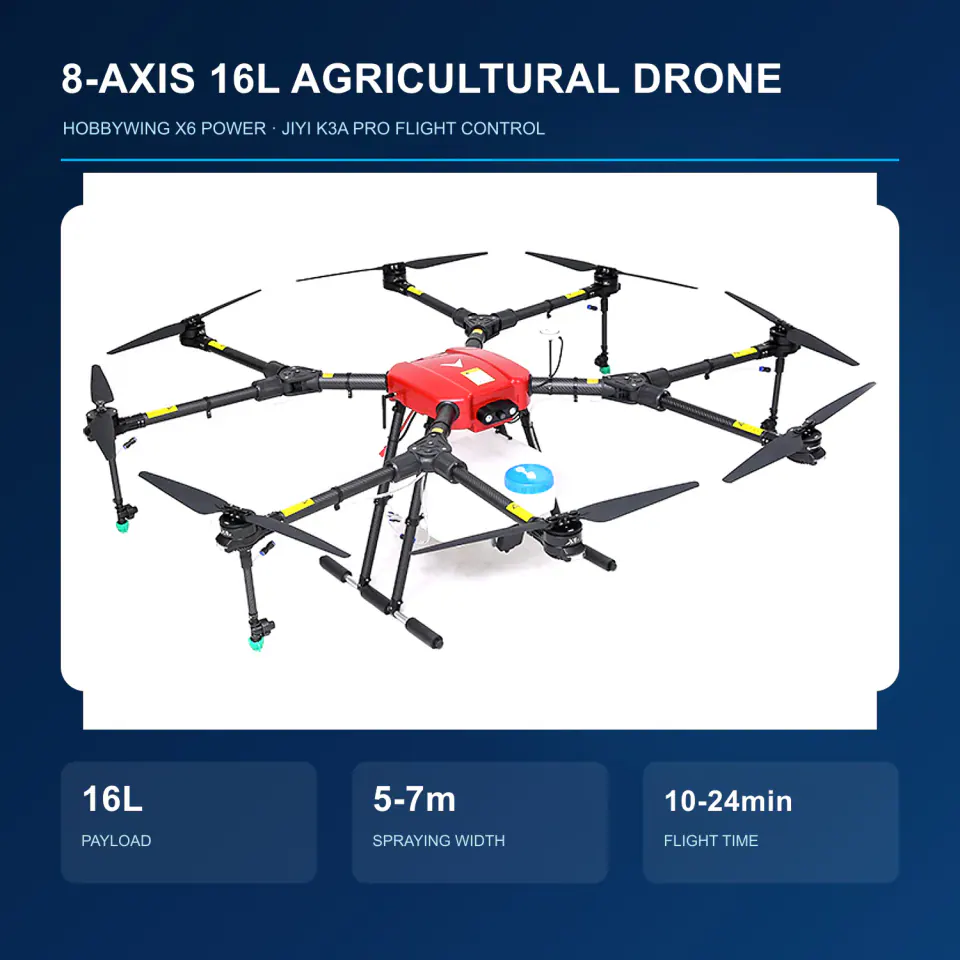

01 / Capacity
Sixteen Litres. Eight-Axis Stability.
A 16 L load capacity, 1680 mm wheelbase and 13.5 kg airframe weight without battery form a compact eight-axis platform for agricultural spraying operations.
- Load capacity
- 16 L
- Wheelbase
- 1680 mm
- Weight without battery
- 13.5 kg
- Maximum takeoff weight
- >36 kg

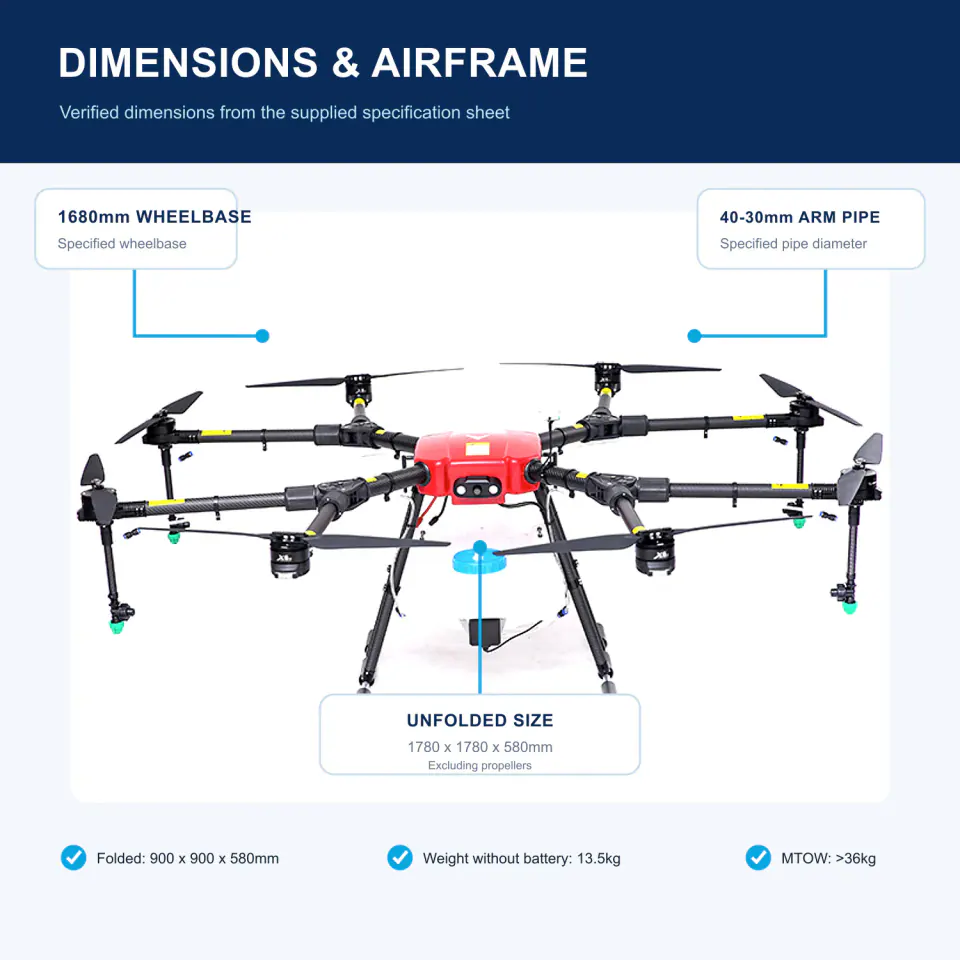

02 / Foldable structure
Open for Work. Fold for Transport.
The foldable airframe reduces storage and transport volume without changing the working footprint required for stable agricultural operation.
- Unfolded size
- 1780 × 1780 × 580 mm
- Folded size
- 900 × 900 × 580 mm

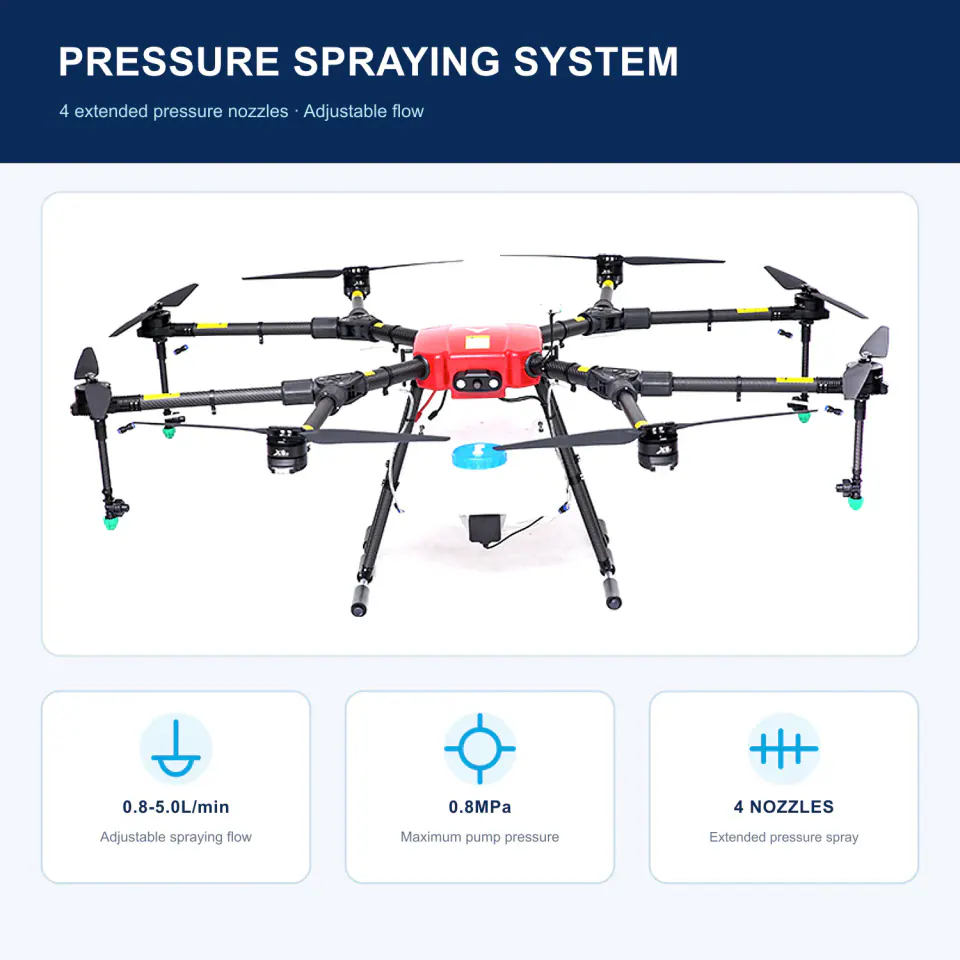

03 / Pressure spraying system
Adjustable Flow. Four Pressure Nozzles.
The pressure spraying system uses four extended pressure nozzles with adjustable flow for different agricultural application requirements.
- Spraying flow
- 0.8–5.0 L/min
- Maximum pump pressure
- 0.8 MPa
- Pressure nozzles
- 4
- Spraying width
- 5–7 m

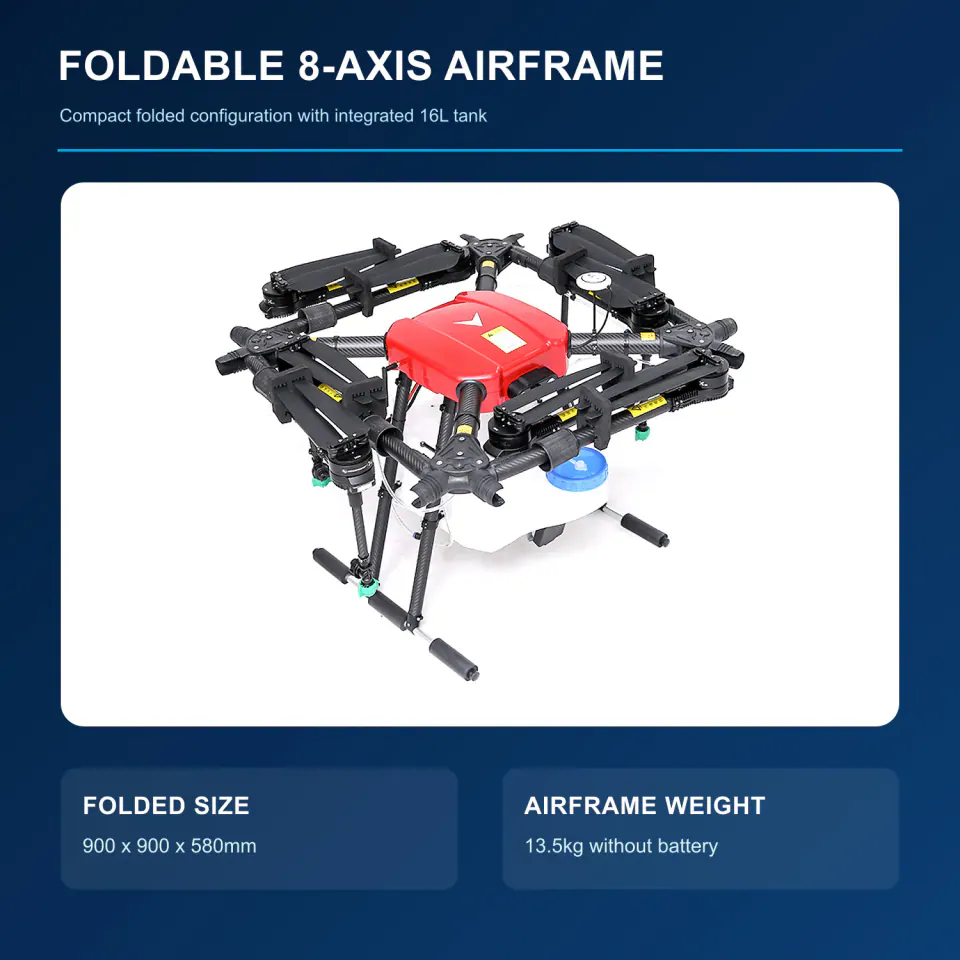

04 / Foldable airframe
Compact Storage. Ready for Field Handling.
The eight-axis airframe folds to 900 × 900 × 580 mm for transport and storage while retaining the integrated 16 L tank configuration. Published performance includes 0–10 m/s flight speed, 10–15 mu operating efficiency per flight and 1000–2000 m remote-control distance.

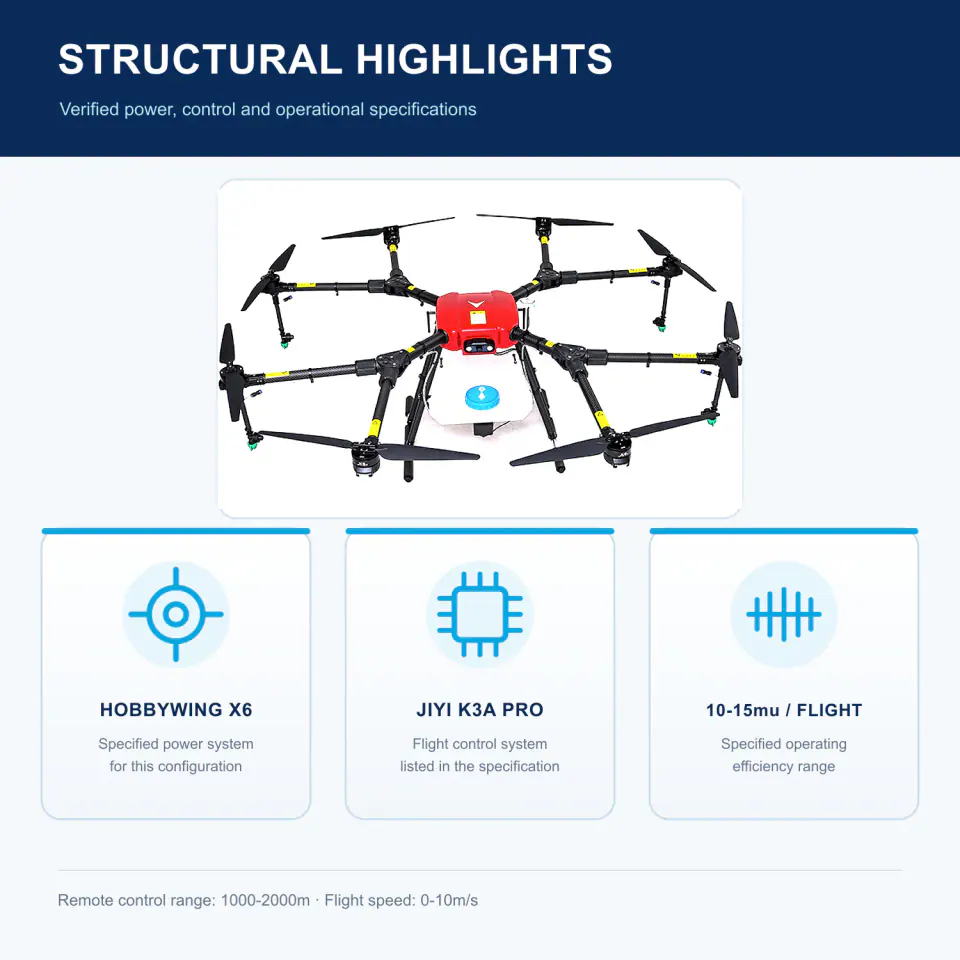

Structural details
The Working Parts, Clearly Shown.
- Hobbywing X6
- Jiyi K3A Pro
- 40–30 mm arm pipe
- 10–15 mu per flight
Buyer’s guide
Compare the Complete Spraying Workflow.
Compare capacity, spray system, batteries, field fit, maintenance and support before selecting a 5–30 L platform.
