Agricultural Drones / 6 Axis Series

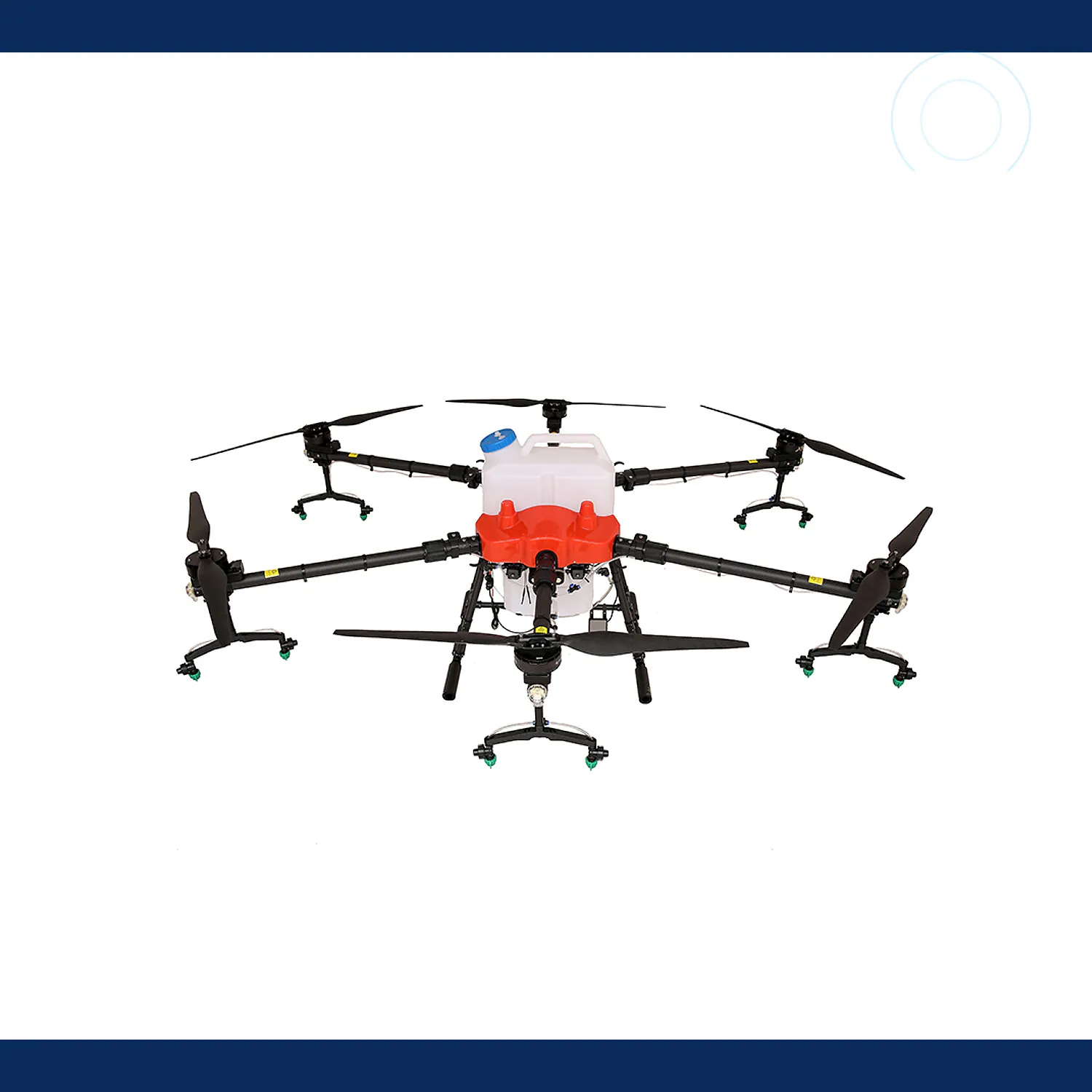

TYI 6 Axis 30L
A high-capacity 30 L six-axis agricultural spraying drone with a plug-and-play foldable airframe and pressure spraying system.
Request a Quote WhatsApp Our Team
- 30 L
- Load capacity
- 25 kg
- Weight without battery
- 10–25 min
- Flight time
- 6–8 m
- Spraying width
High-capacity modular platform
Six Rotors. Thirty-Litre Capacity.
The TYI 6 Axis 30L combines a plug-and-play foldable airframe with a 30-litre agricultural spraying system. Its modular structure and published operating parameters support demanding crop-protection work.

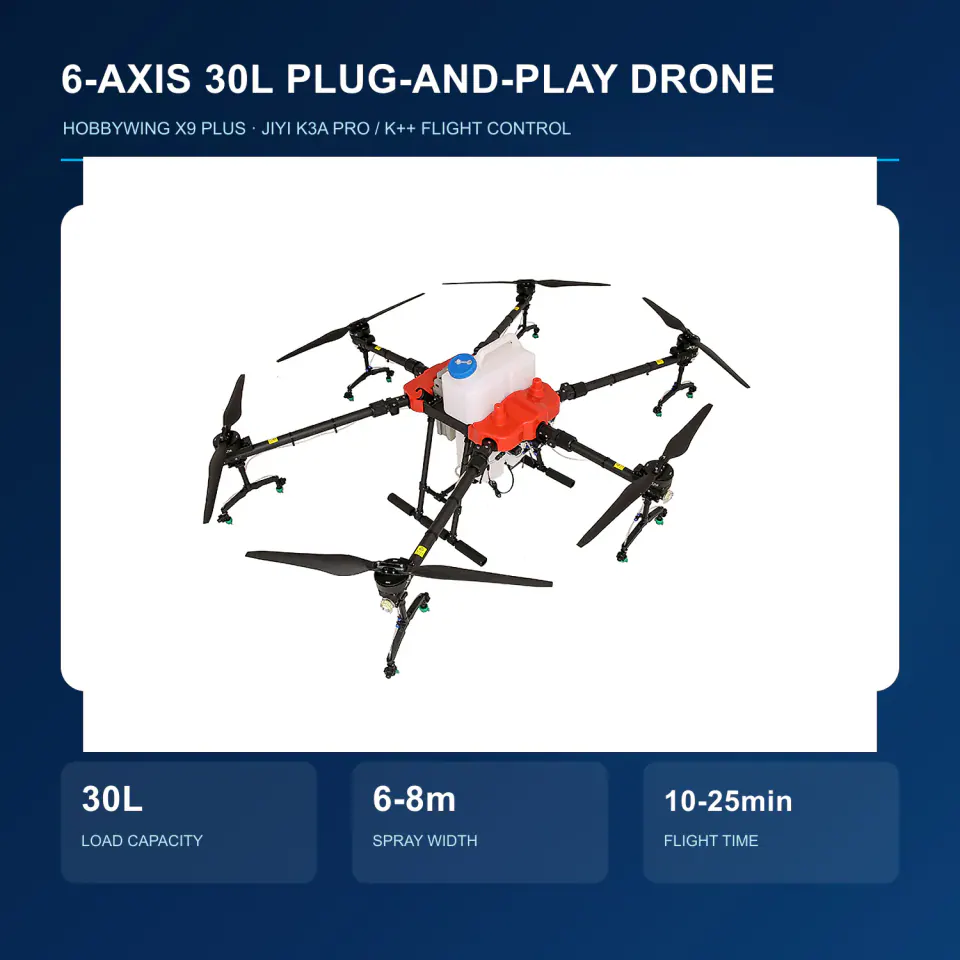

01 / Capacity
Thirty Litres. Built for Productive Coverage.
A 30 L load capacity, 1900 mm wheelbase and 25 kg airframe weight without battery form a high-capacity platform for agricultural spraying operations.
- Load capacity
- 30 L
- Wheelbase
- 1900 mm
- Weight without battery
- 25 kg
- Maximum takeoff weight
- >65 kg

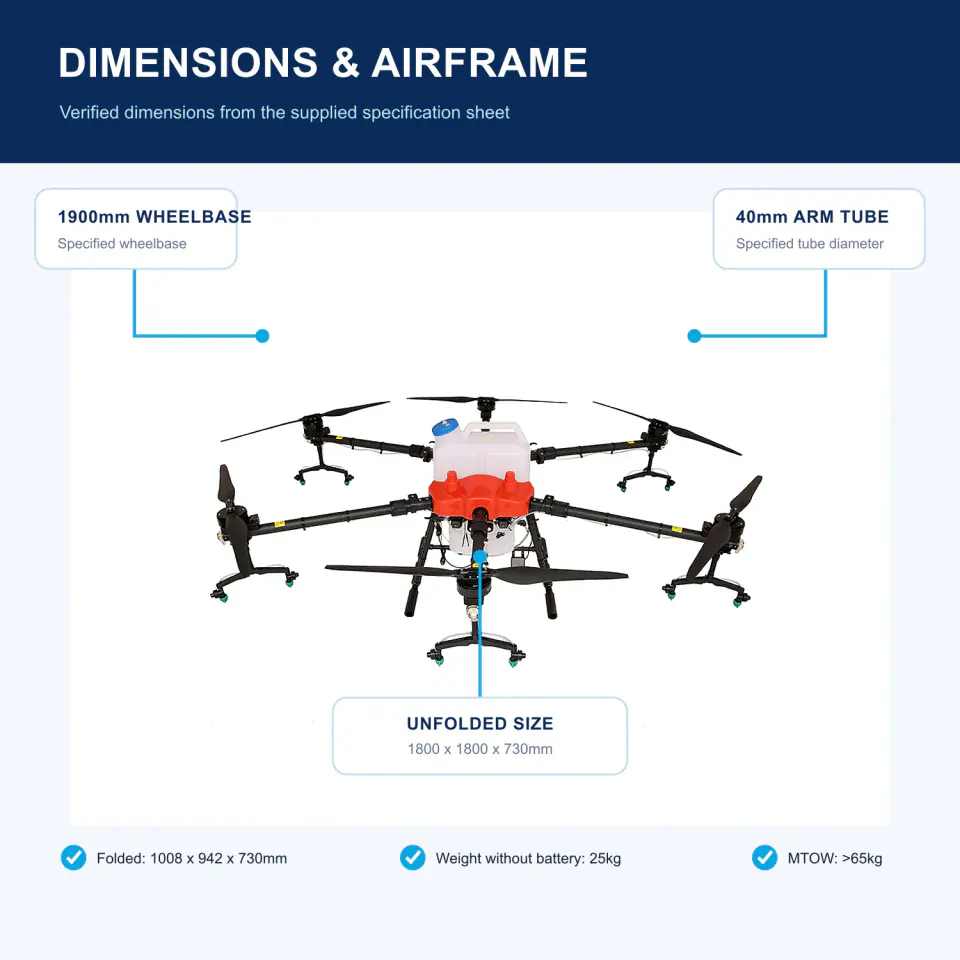

02 / Foldable structure
Open for Work. Fold for Transport.
The foldable airframe reduces storage and transport volume without changing the working footprint required for stable agricultural operation.
- Unfolded size
- 1800 × 1800 × 730 mm
- Folded size
- 1008 × 942 × 730 mm

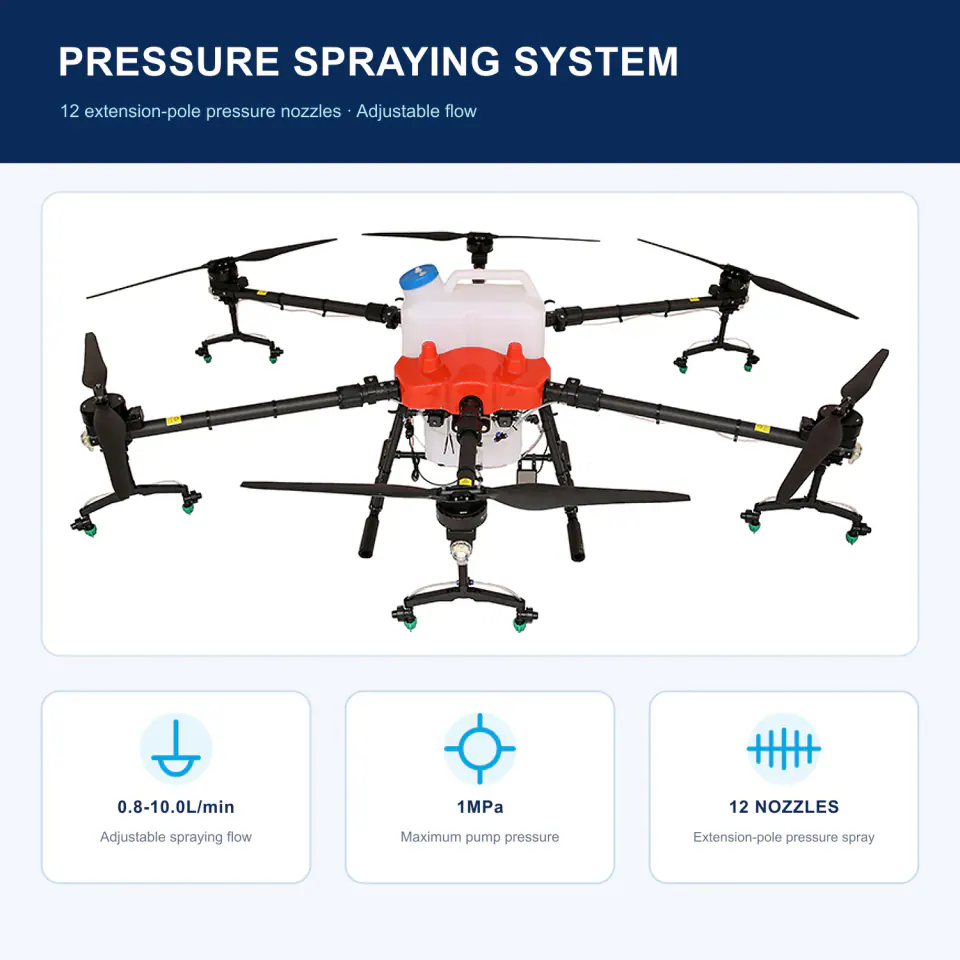

03 / Pressure spraying system
Adjustable Flow. Twelve Pressure Nozzles.
The pressure spraying system uses twelve extension-pole nozzles with adjustable flow for high-capacity agricultural application.
- Spraying flow
- 0.8–10.0 L/min
- Maximum pump pressure
- 1 MPa
- Pressure nozzles
- 12
- Spraying width
- 6–8 m

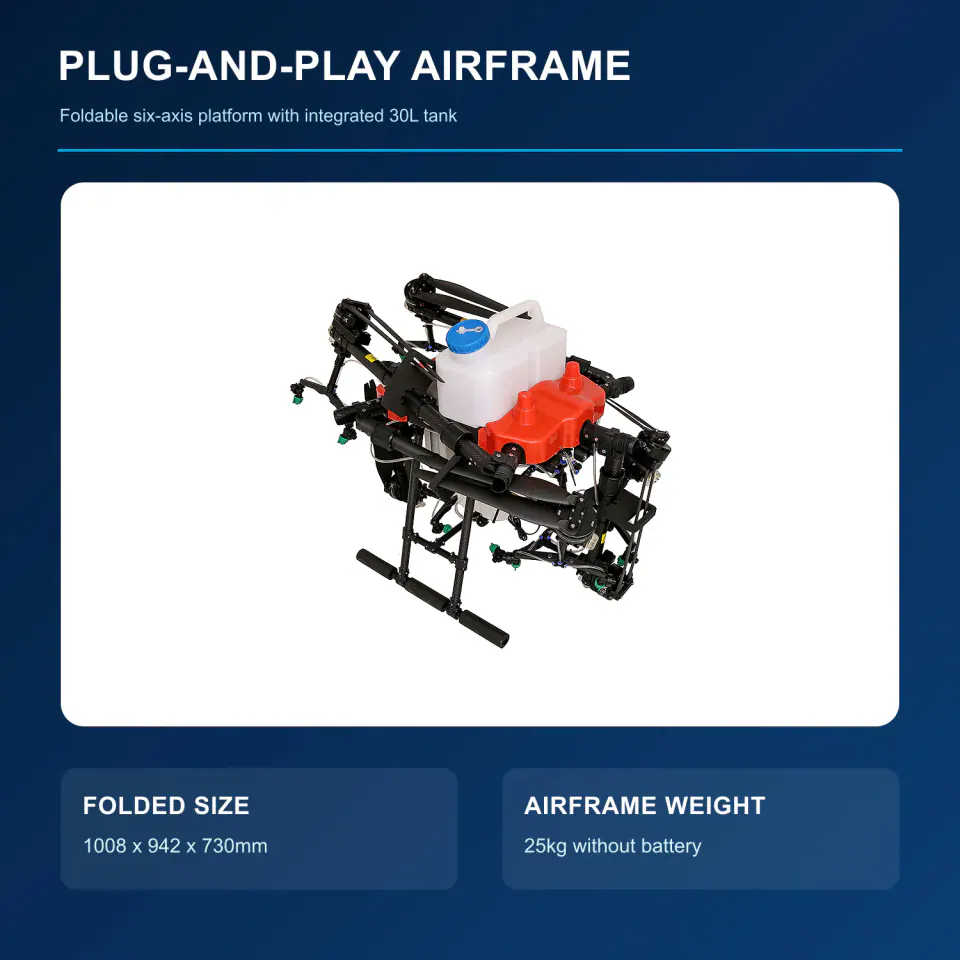

04 / Plug-and-play airframe
Foldable Structure. Modular Field Handling.
The plug-and-play six-axis airframe folds to 1008 × 942 × 730 mm for transport and storage while retaining the integrated 30 L tank configuration. Published performance includes 0–10 m/s flight speed, 20–30 mu operating efficiency per flight and 1000–2000 m remote-control distance.

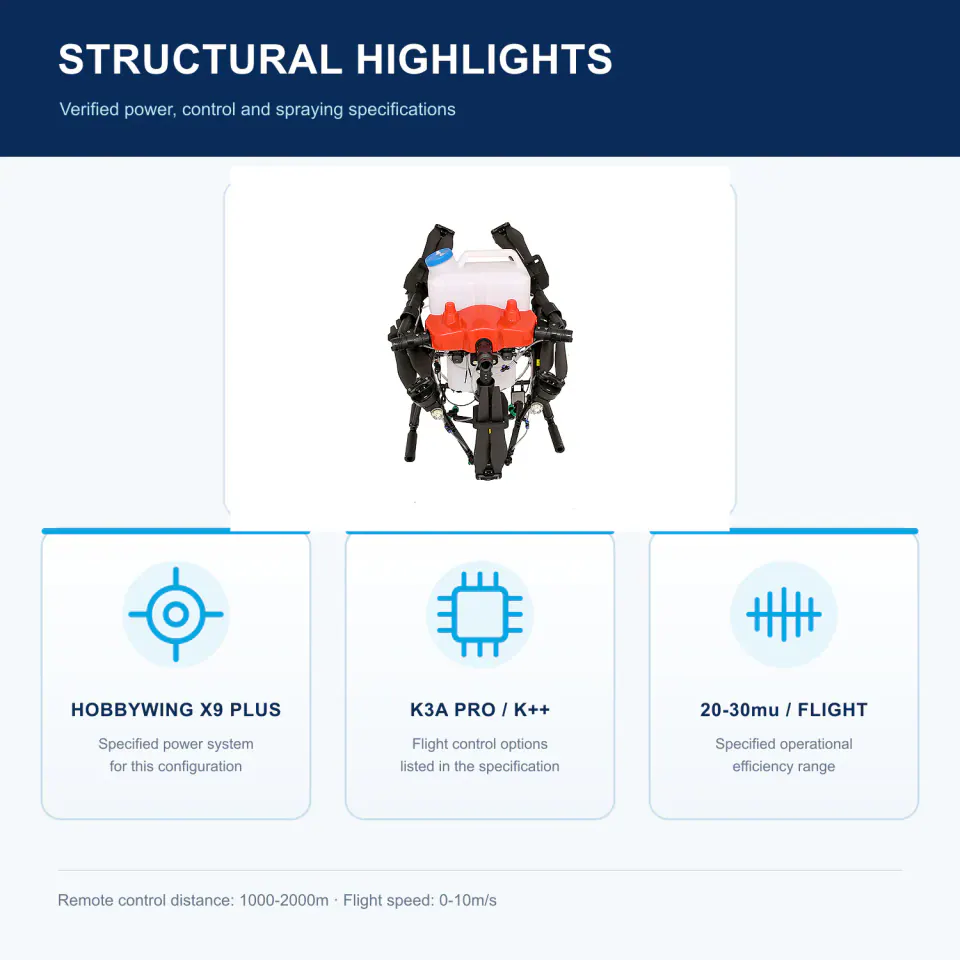

Structural details
The Working Parts, Clearly Shown.
- Hobbywing X9 Plus
- Jiyi K3A Pro / K++
- 40 mm arm tube
- 20–30 mu per flight
Buyer’s guide
Compare the Complete Spraying Workflow.
Compare capacity, spray system, batteries, field fit, maintenance and support before selecting a 5–30 L platform.
