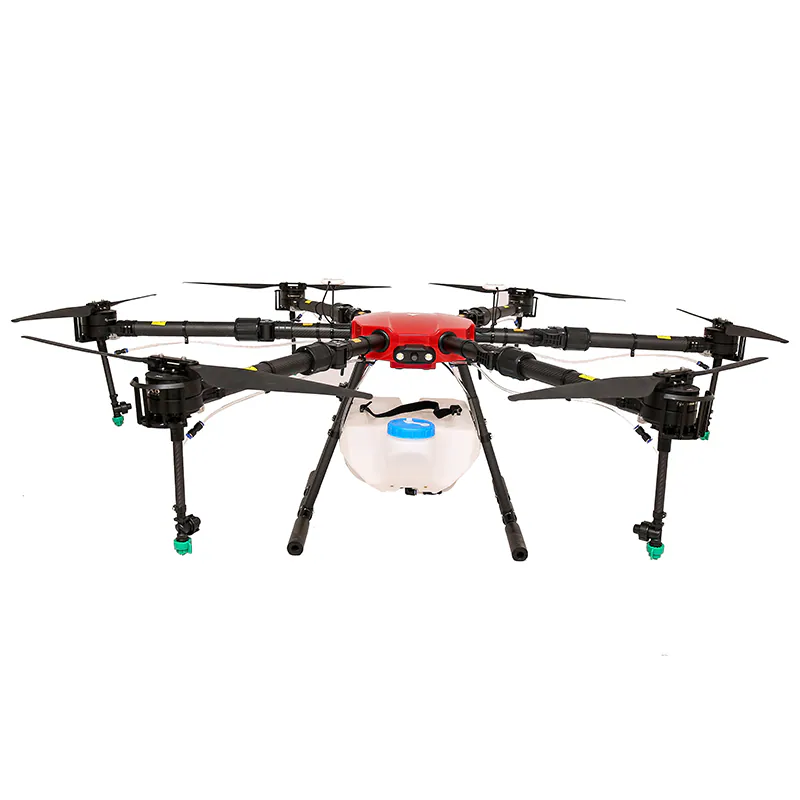

Agricultural Drones / 6 Axis Series
TYI 6 Axis 16L
A foldable six-axis 16 L agricultural spraying drone with a pressure spraying system, practical field coverage and a stable multi-rotor platform.
Request a Quote WhatsApp Our Team
- 16 L
- Load capacity
- 16.2 kg
- Weight without battery
- 10–24 min
- Flight time
- 5–7 m
- Spraying width
Higher-capacity six-axis platform
Six Rotors. Sixteen Litres.
The TYI 6 Axis 16L combines a foldable six-axis airframe with a 16-litre agricultural spraying system. Its published size, operating range and adjustable spray flow support productive crop-protection work.

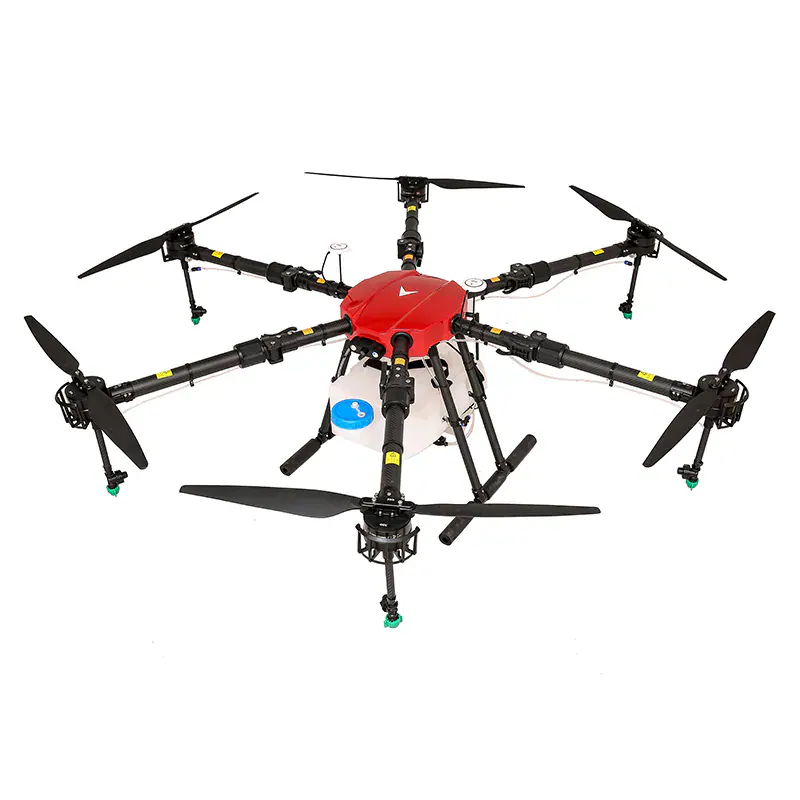

01 / Capacity
Sixteen Litres. Built for More Coverage.
A 16 L load capacity, 1780 mm wheelbase and 16.2 kg airframe weight without battery form a higher-capacity platform for agricultural spraying operations.
- Load capacity
- 16 L
- Wheelbase
- 1780 mm
- Weight without battery
- 16.2 kg
- Maximum takeoff weight
- >36 kg

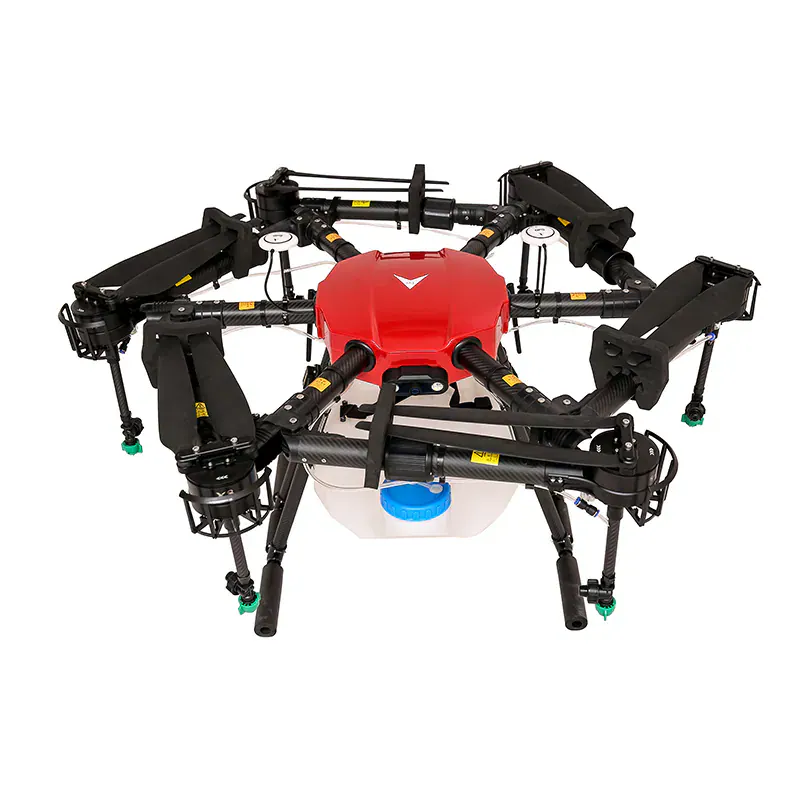

02 / Foldable structure
Open for Work. Fold for Transport.
The foldable airframe reduces storage and transport volume without changing the working footprint required for stable agricultural operation.
- Unfolded size
- 1780 × 1780 × 570 mm
- Folded size
- 1100 × 1100 × 570 mm

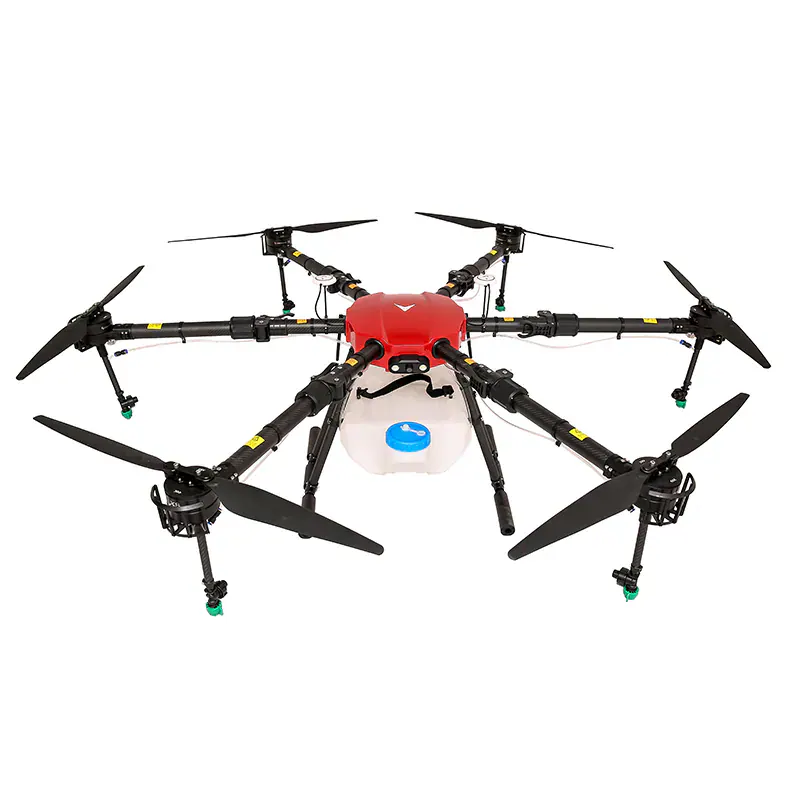

03 / Power and spraying system
Specified Power. Adjustable Application.
The Hobbywing X8 power system works with Jiyi K3A Pro flight control and a pressure spraying system configured with six extension-pole nozzles.
- Power system
- Hobbywing X8 ×6
- Flight control
- Jiyi K3A Pro
- Spraying flow
- 0.8–8.0 L/min
- Water-pump pressure
- 0.8 MPa

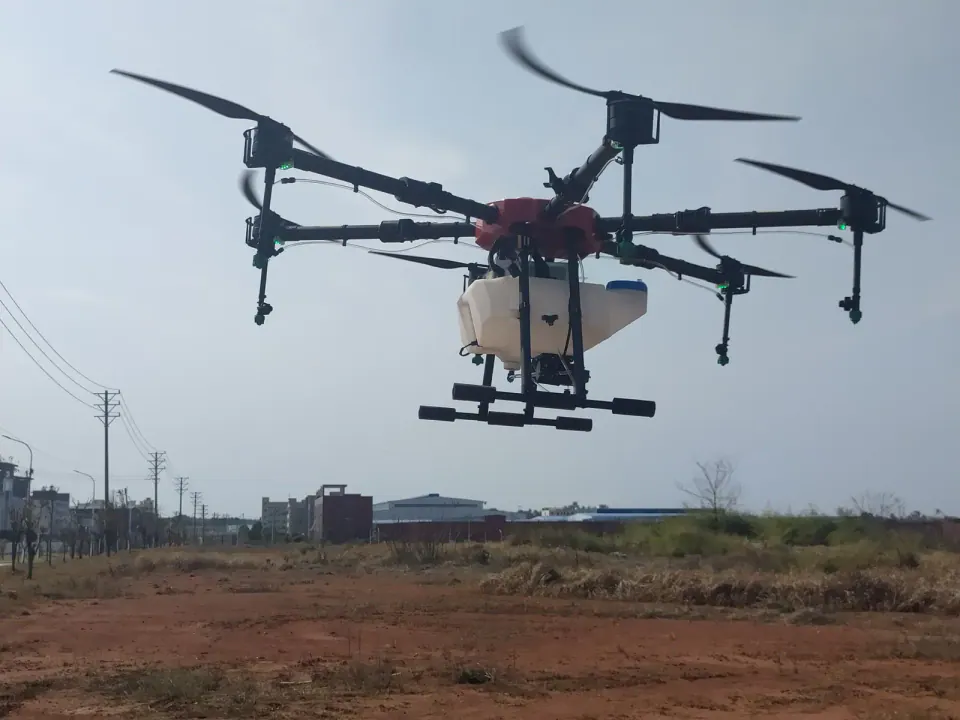

04 / Field application
Designed Around Real Farm Work.
Published field parameters include a 5–7 m spraying width, 0–10 m/s flight speed, 10–15 mu operating efficiency per flight and a remote-control distance of 1000–2000 m.

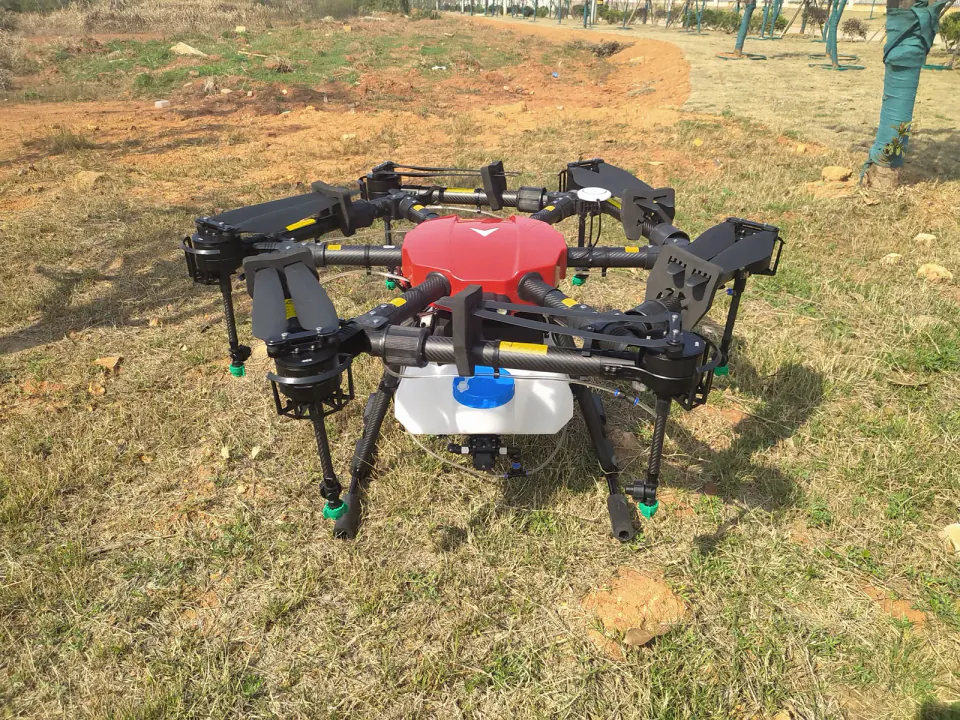

Structural details
The Working Parts, Clearly Shown.
- Hobbywing X8
- Jiyi K3A Pro
- 40 mm arm tube
- Six pressure nozzles
Buyer’s guide
Compare the Complete Spraying Workflow.
Compare capacity, spray system, batteries, field fit, maintenance and support before selecting a 5–30 L platform.
