Agricultural Drones / 6 Axis Series

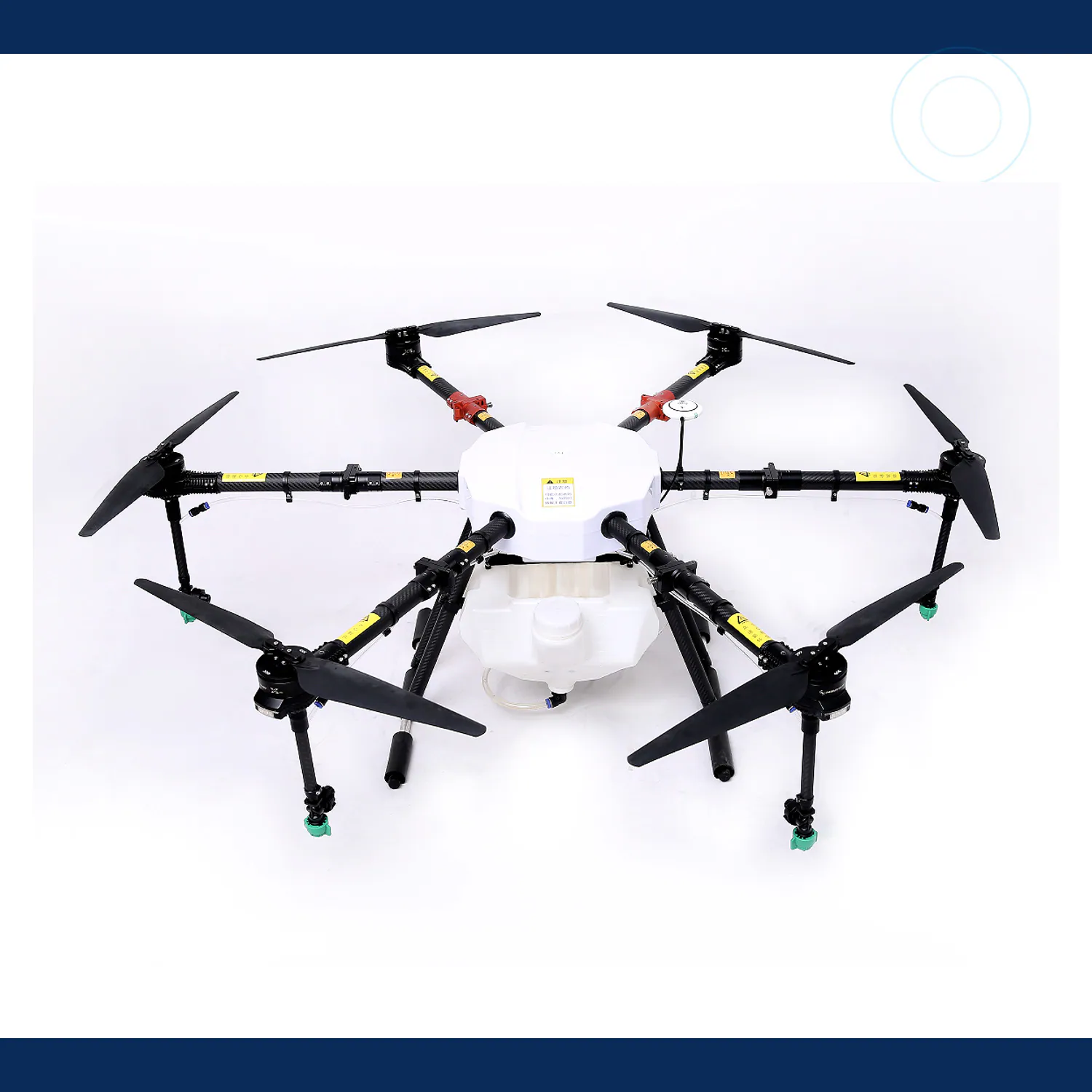

TYI 6 Axis 10L
A foldable six-axis 10 L agricultural spraying drone with adjustable flow, practical field coverage and a clearly specified flight-control platform.
Request a Quote WhatsApp Our Team
- 10 L
- Load capacity
- 10 kg
- Weight without battery
- 10–15 min
- Flight time
- 4–5 m
- Spraying width
Six-axis field platform
Six-Axis Stability. Practical 10 L Capacity.
The TYI 6 Axis 10L combines a six-axis airframe with a 10-litre agricultural spraying system. Its foldable dimensions, adjustable spray flow and published operating range support practical day-to-day crop protection work.

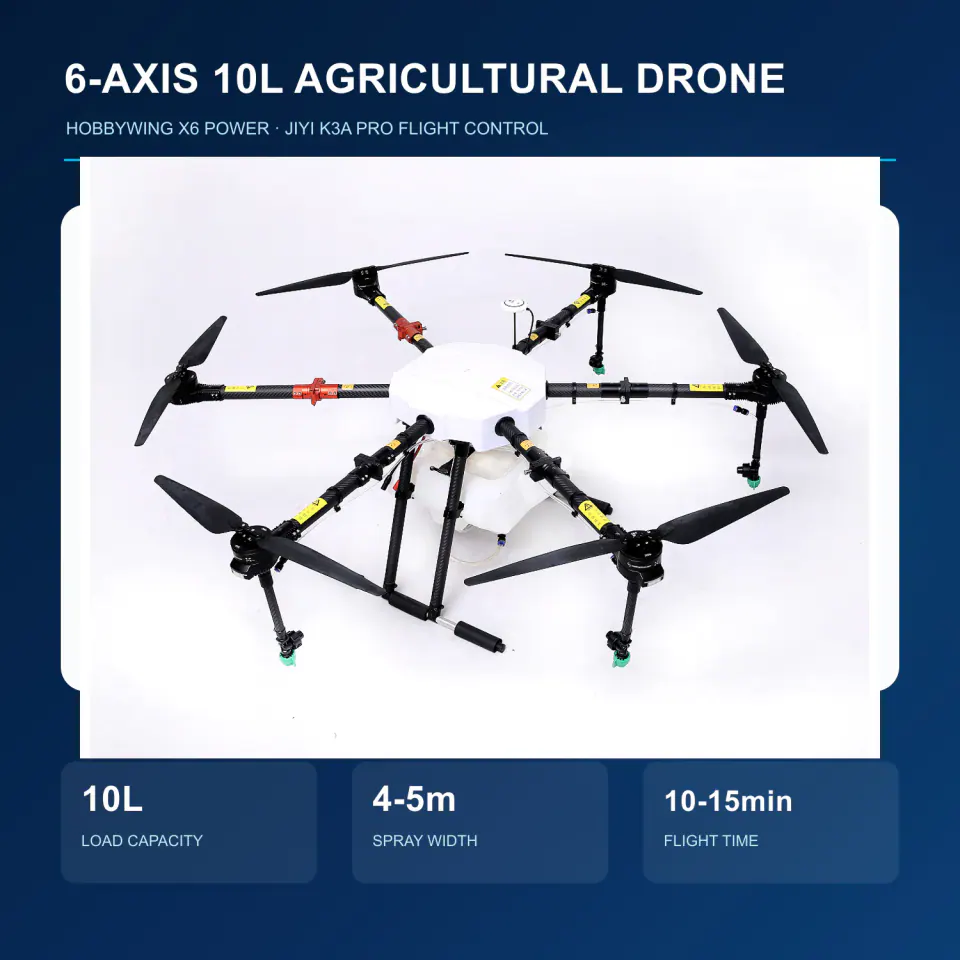

01 / Capacity
Ten Litres. Built for Field Work.
A 10 L load capacity, 1280 mm wheelbase and 10 kg airframe weight without battery create a balanced configuration for routine agricultural spraying.
- Load capacity
- 10 L
- Wheelbase
- 1280 mm
- Weight without battery
- 10 kg
- Maximum takeoff weight
- >28 kg

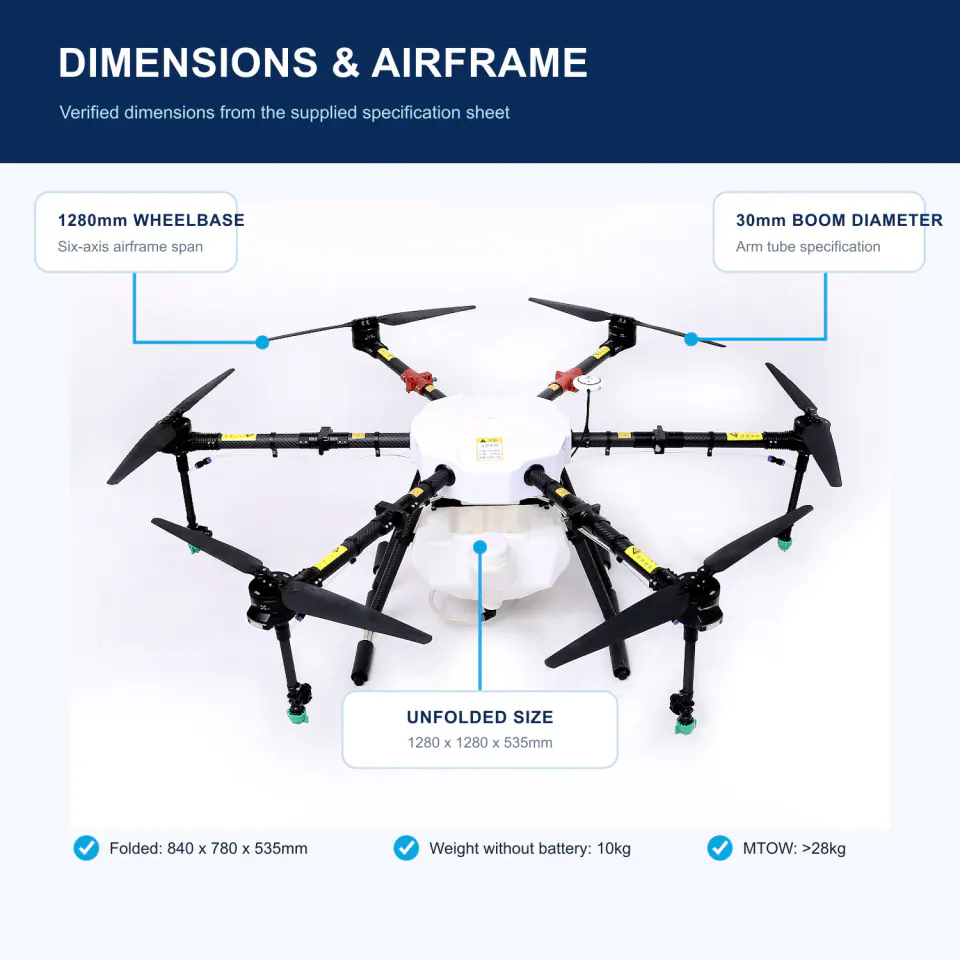

02 / Foldable structure
Open for Work. Fold for Transport.
The foldable airframe reduces storage and transport volume without changing the working footprint required for stable agricultural operation.
- Unfolded size
- 1280 × 1280 × 535 mm
- Folded size
- 840 × 780 × 535 mm

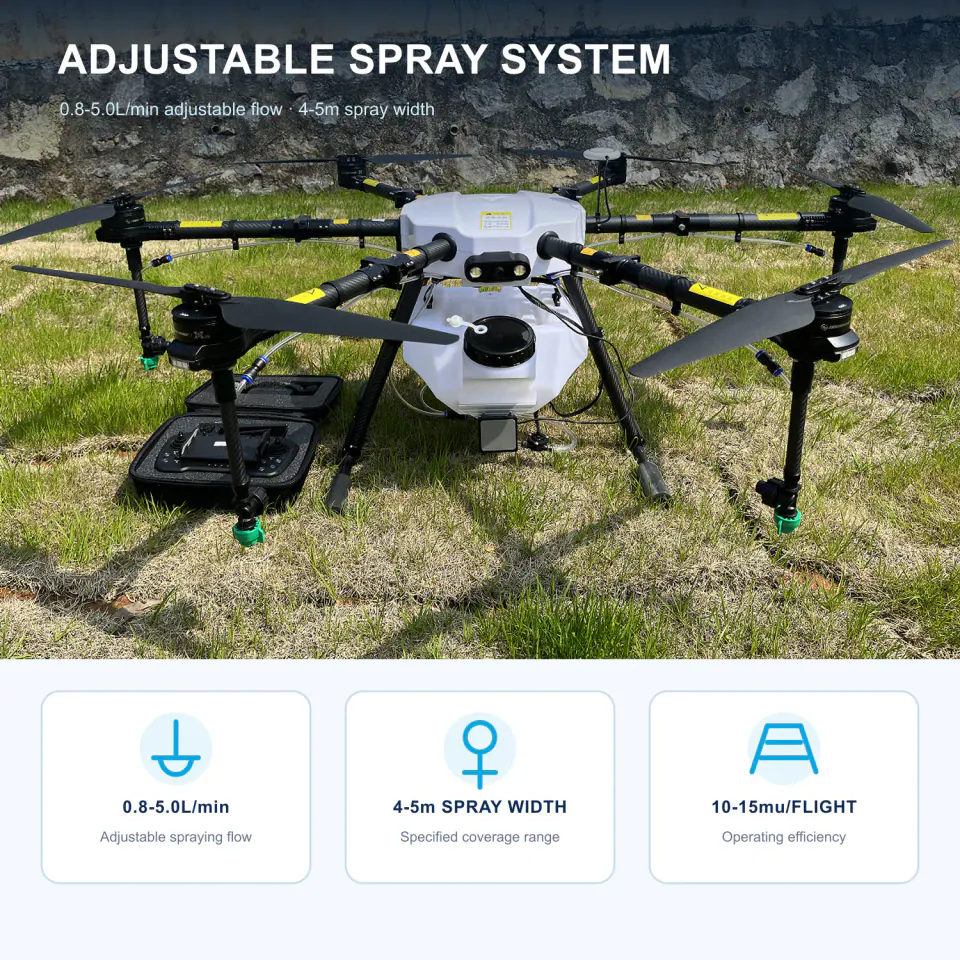

03 / Adjustable spray system
Adjustable Flow. Practical Coverage.
The spraying system supports adjustable output for different field requirements, with published coverage and efficiency figures for routine crop-protection operations.
- Spraying flow
- 0.8–5.0 L/min
- Spraying width
- 4–5 m
- Operating efficiency
- 10–15 mu per flight
- Flight time
- 10–15 min

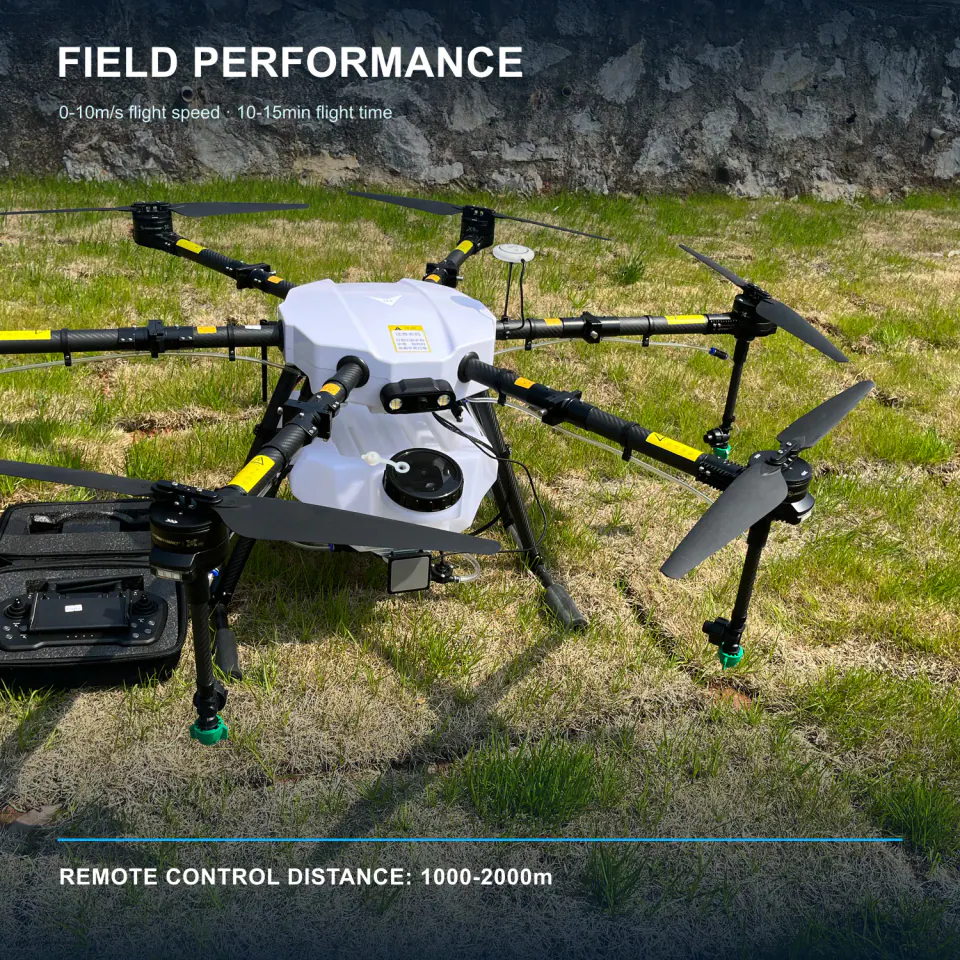

04 / Field application
Designed Around Real Farm Work.
Published field parameters include a flight speed of 0–10 m/s, 10–15 minutes of flight time and a remote-control distance of 1000–2000 m.

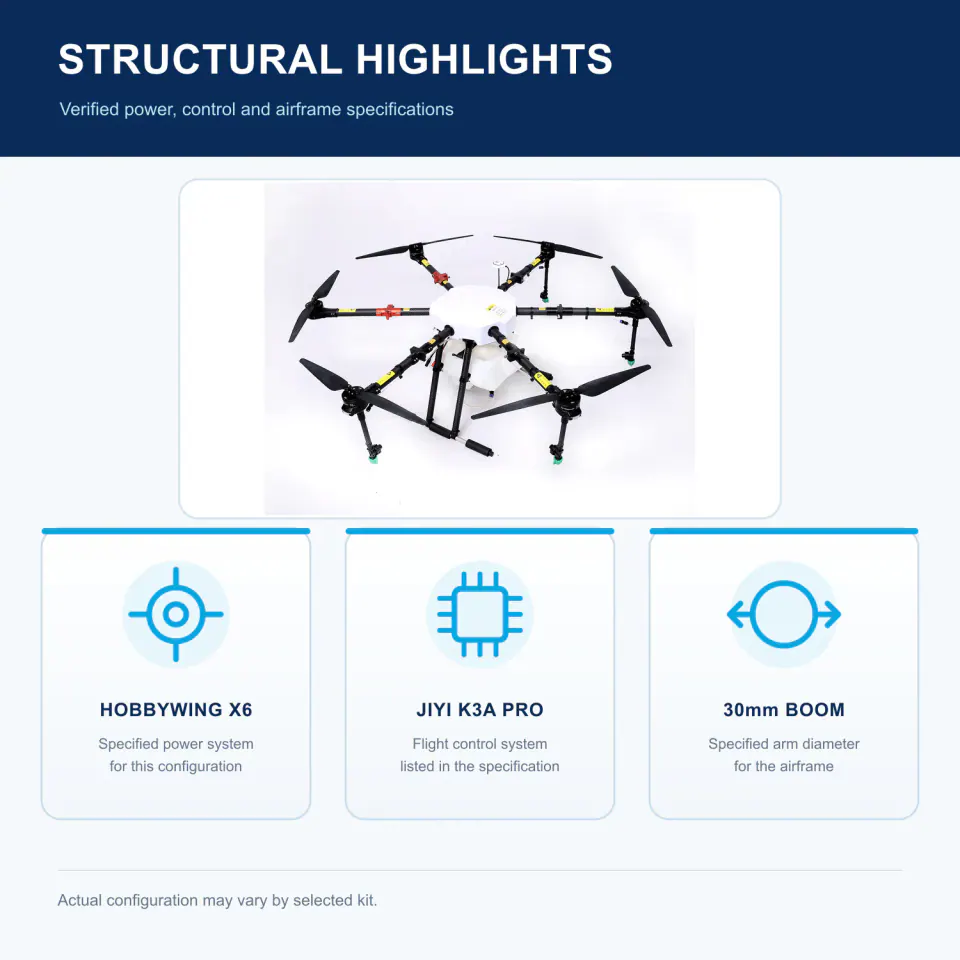

Structural details
The Working Parts, Clearly Shown.
- Hobbywing X6
- Jiyi K3A Pro
- 30 mm boom
- Six-axis airframe
Buyer’s guide
Compare the Complete Spraying Workflow.
Compare capacity, spray system, batteries, field fit, maintenance and support before selecting a 5–30 L platform.
