Agricultural Drones / 4 Axis Series

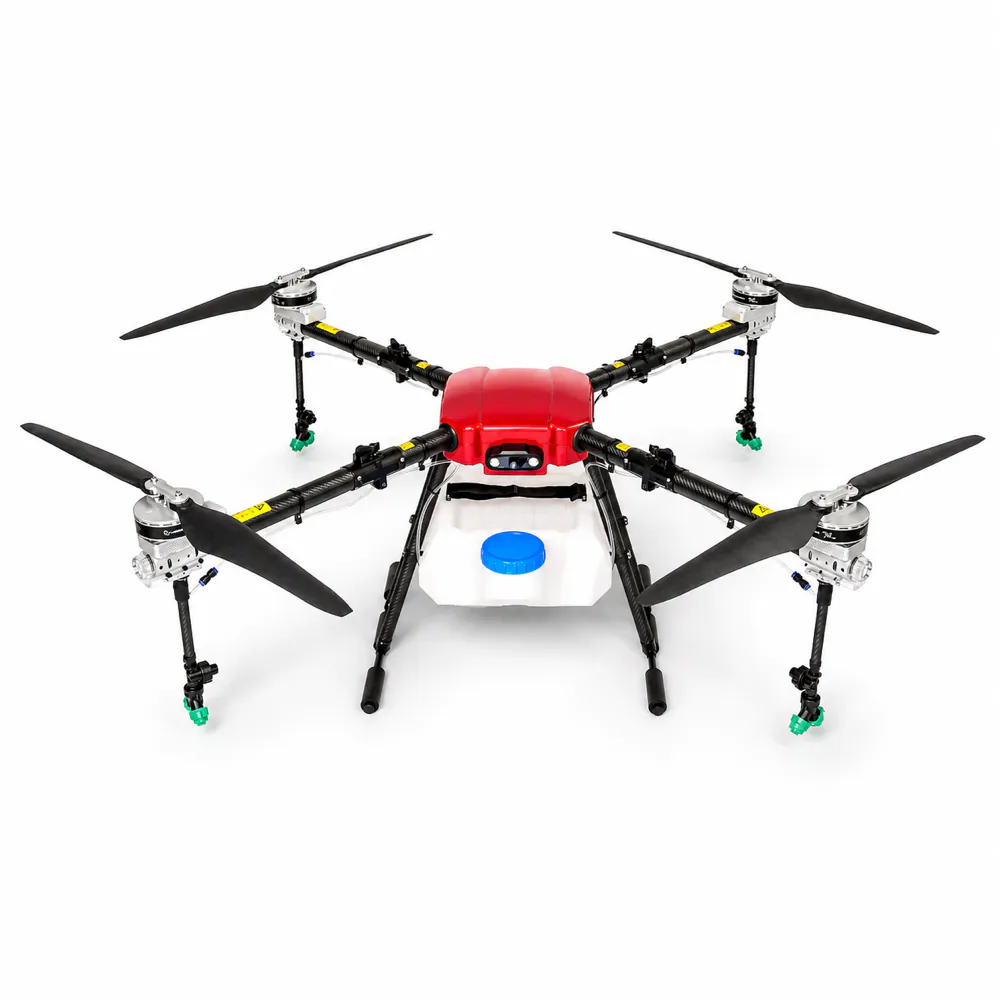

TYI 4 Axis 16L
A higher-capacity 16 L foldable agricultural spraying drone for productive crop protection across larger daily operations.
Request a Quote WhatsApp Our Team
- 16 L
- Tank capacity
- 17 kg
- Empty-load weight
- 10 min
- Full-load endurance
- 24 min
- Empty-load endurance
Higher-capacity field work
Built to Carry More. Ready to Cover More.
The TYI 4 Axis 16L brings a larger spraying tank and published high-efficiency operating parameters to agricultural teams that need more capacity without giving up foldable transport.

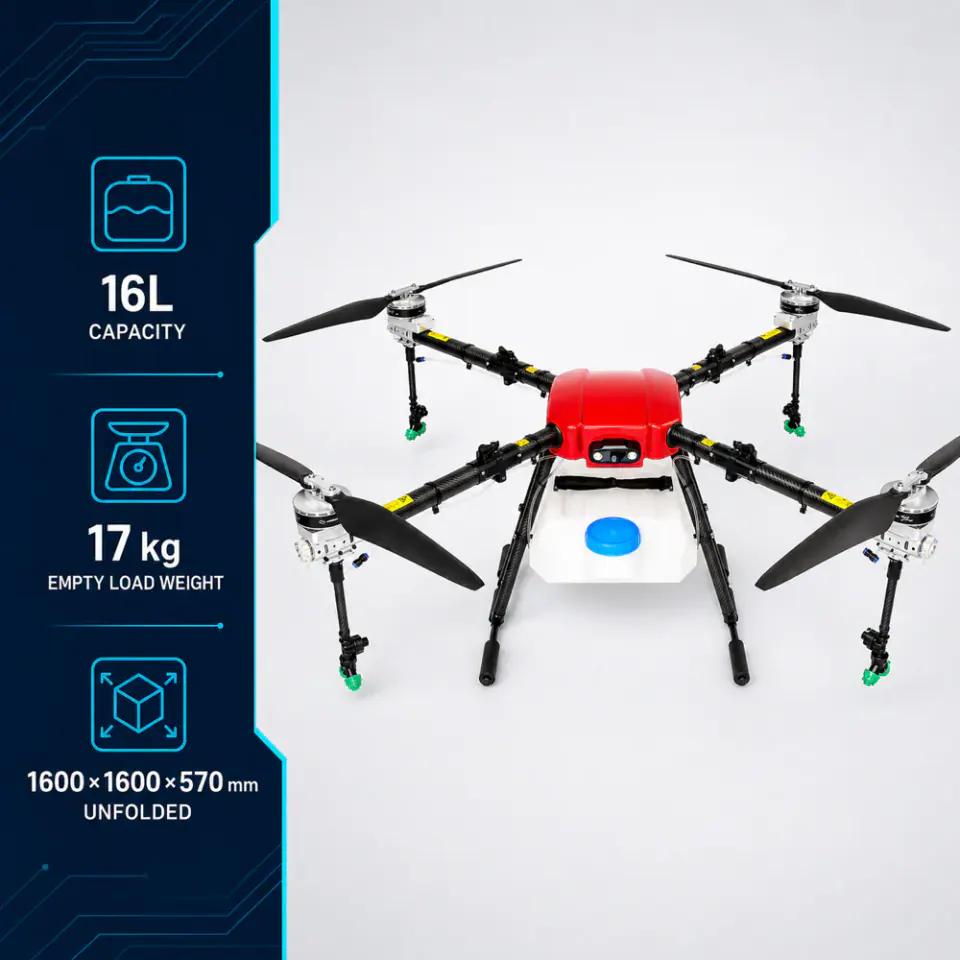

01 / Capacity
Sixteen Litres. Purpose-Built Capacity.
The 16 L tank and 17 kg empty-load weight form a higher-capacity platform for productive agricultural spraying requirements.
- Tank capacity
- 16 L
- Empty-load weight
- 17 kg
- Unfolded size
- 1600 × 1600 × 570 mm

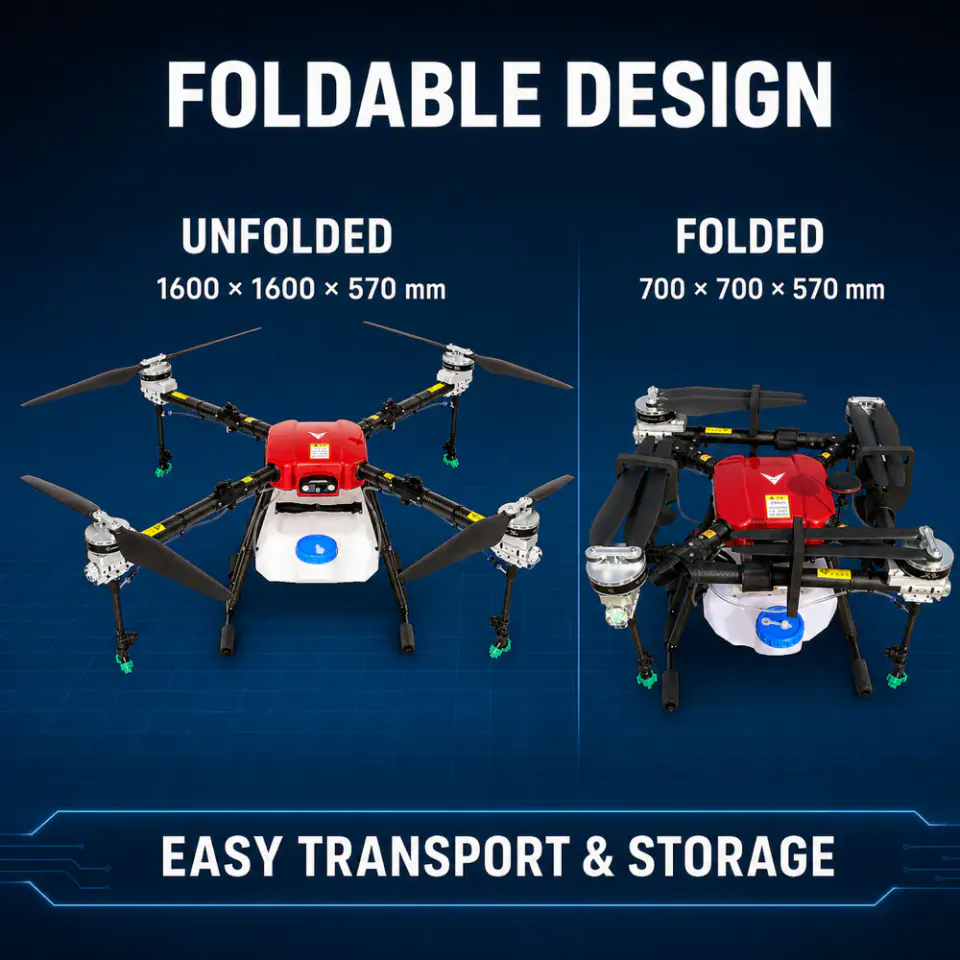

02 / Foldable structure
Open for Work. Fold for Transport.
The foldable airframe reduces storage and transport volume without changing the working footprint required for stable agricultural operation.
- Unfolded size
- 1600 × 1600 × 570 mm
- Folded size
- 700 × 700 × 570 mm

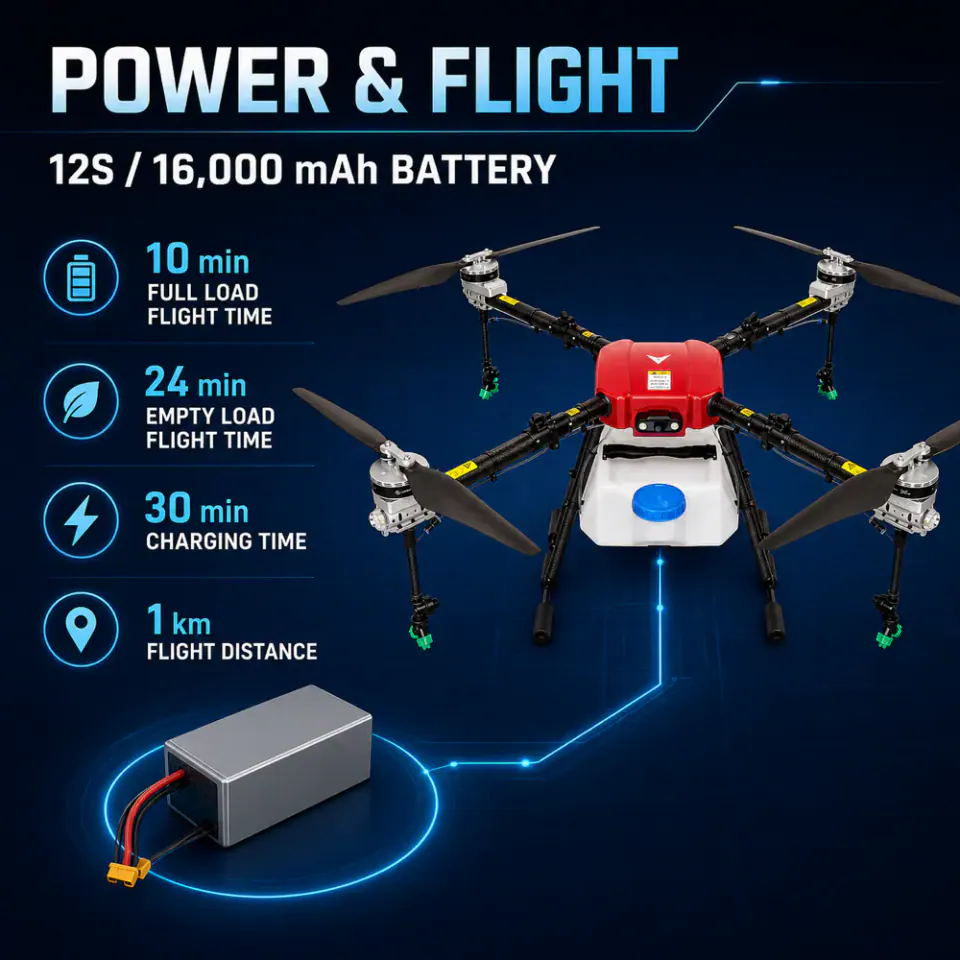

03 / Power and endurance
More Endurance. A Clear Work Cycle.
The 12S 16,000 mAh battery system supports published full-load and empty-load endurance, with a 30-minute charging time.
- Battery
- 12S / 16,000 mAh
- Full-load endurance
- 10 min
- Empty-load endurance
- 24 min
- Charging time
- 30 min
- Flight distance
- 1 km
04 / Field application
Designed Around Real Farm Work.
Published parameters include a 2–4 m spraying height, 2–10 m/s spraying speed and work efficiency of 10 ha/h for productive field application.

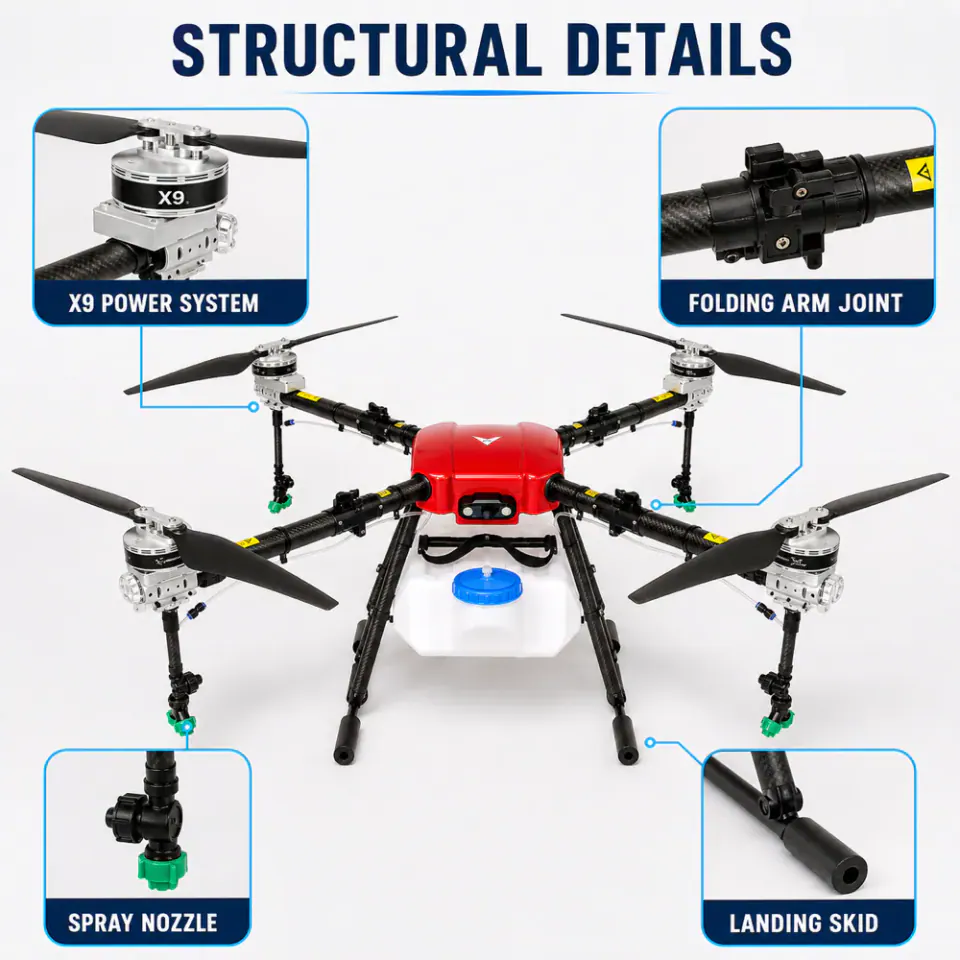

Structural details
The Working Parts, Clearly Shown.
- X9 power system
- Folding arm joint
- Spray nozzle
- Landing skid
Buyer’s guide
Compare the Complete Spraying Workflow.
Compare capacity, spray system, batteries, field fit, maintenance and support before selecting a 5–30 L platform.
